GONGMOSEMIDatasheet (PDF)

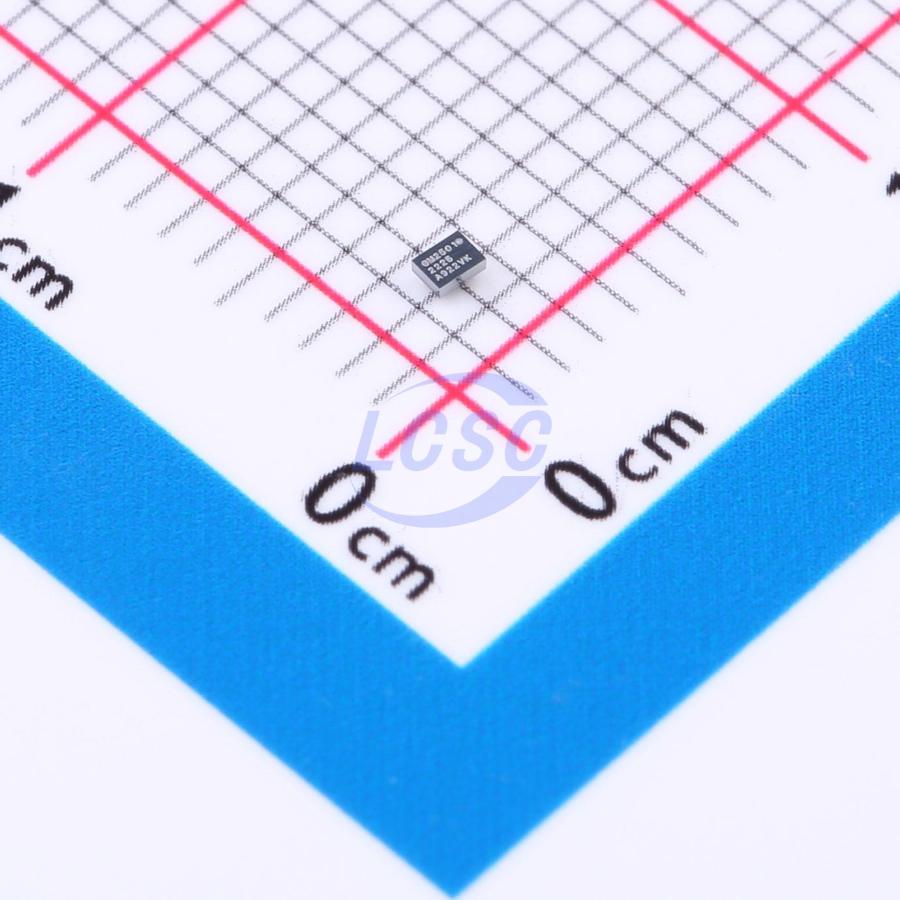

GM2501KCBZ
Buck Switching Regulator IC Fixed 3.3V 1 Output 1A WLCSP-6(1.2x0.9)
WLCSP-6(1.2x0.9)RoHSActive
1A point-of-load step-down voltage regulator
- Manufacturer
- GONGMOSEMI
- Manufacturer part #
- GM2501KCBZ
- Store part #
- C5333268
- Package / case
- WLCSP-6(1.2x0.9)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,039 in stock
#C5333268
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.16 | ₹124.16 |
| 10+ | ₹98.03 | ₹980.30 |
| 30+ | ₹84.96 | ₹2,548.80 |
| 100+ | ₹72.10 | ₹7,210.00 |
| 500+ | ₹64.30 | ₹32,150.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹124.16
₹124.16
excl. GST
₹146.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GM2501KCBZ
₹124.16 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 8MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Output discharge;Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 2.3V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 3.3V
- Quiescent Current
- 18uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
GM2501 is a compact, high-efficiency high-frequency DC-DC regulator (µPOL). The switching frequency ranges from 6.5MHz to 10MHz, allowing the use of very small external components. Fixed output voltages between 1.2V and 3.3V are available, supporting input voltages from 2.3V to 5.5V. The 18µA low quiescent current enables high efficiency even under very light loads. At light load currents, the regulator automatically enters pulse frequency modulation (PFM) operating mode to achieve optimal efficiency across the entire load current range. If PFM mode is not required, the MODE pin can be set HIGH to force fixed-frequency operation (PWM). The µPOL comes in a compact 6-pin WLCSP package with a 400µm pin pitch and dimensions of 1.2mm x 0.9mm x 0.6mm.
Applications
- Optical modules
- Mobile phones
- Tablet PCs
- Wireless data cards
- Embedded power supplies
- Wearable devices
- IoT
- Security surveillance systems
Key features
- Output Current: 1A
- Switching Frequency: 6.5 - 10MHz
- Selectable PFM Light-Load Operation
- Quiescent Current: 18uA
- Peak Efficiency: 95%
- Input Voltage Range: 2.3V to 5.5V
- Fixed Output Voltage: 1.2V to 3.3V
- Fast Load Transient Response
- 100% Duty Cycle
- Logic Enable Input
- Soft Start
- Input Undervoltage Lockout
- Overcurrent Protection
- Thermal Shutdown
- Active Output Discharge
- RoHS Compliant, Lead-Free
