GREENMICRODatasheet (PDF)

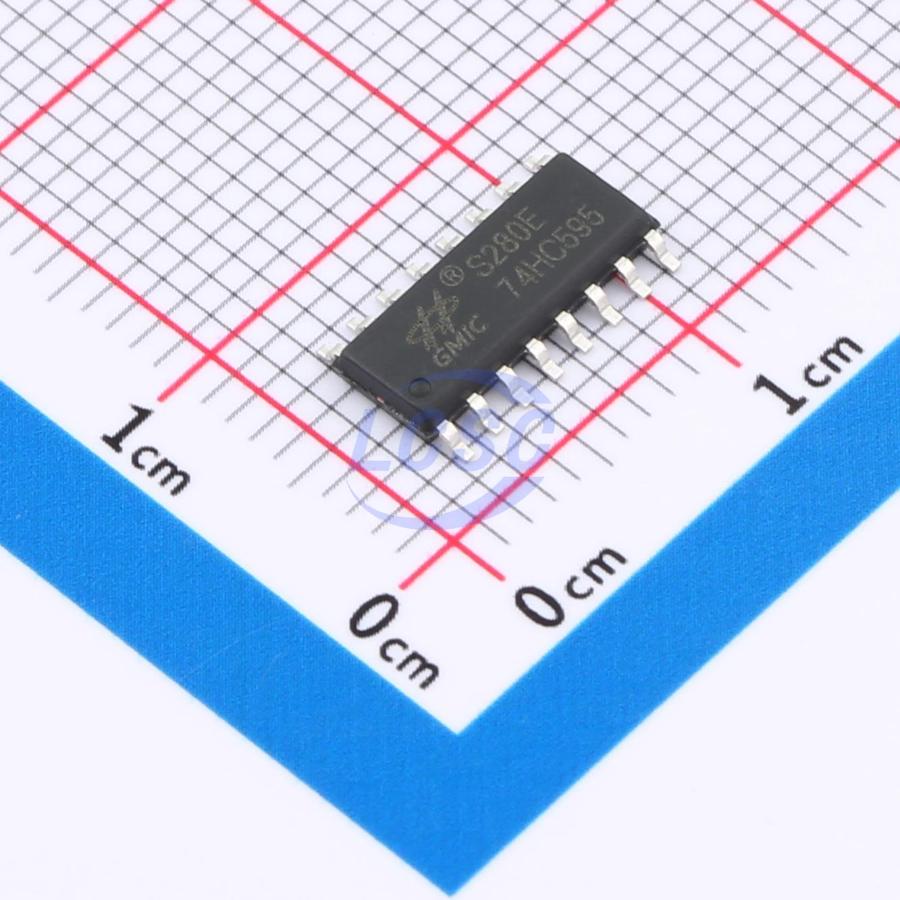

GM74HC595DR
2V~5.5V 1 Serial-to-Serial or Parallel SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- GM74HC595DR
- Store part #
- C49329007
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,870 in stock
#C49329007
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.17 | ₹70.85 |
| 50+ | ₹11.05 | ₹552.50 |
| 150+ | ₹9.49 | ₹1,423.50 |
| 500+ | ₹8.32 | ₹4,160.00 |
| 2,500+ | ₹7.38 | ₹18,450.00 |
| 5,000+ | ₹6.91 | ₹34,550.00 |
5 × ₹14.17
₹70.85
excl. GST
₹83.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
GM74HC595DR
₹70.85 for 5 + GST
Specifications
- Operating temperature
- -40℃~+105℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Series
- 74HC
- Number of Elements
- 1
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.293 g
Overview
The 74HC595 is a high-speed silicon-gate CMOS device with pin compatibility with low-power Schottky TTL. The device contains an 8-bit shift register and an 8-bit D-type latch with 3-state parallel outputs. The shift register accepts serial data and provides serial or parallel outputs. The shift register also provides parallel data to the 8-bit latch. The shift register and latch have separate clock inputs. In addition, the device includes an asynchronous reset for the shift register.
Key features
- 8-bit shift register with serial input, serial or parallel output
- Latch with tri-state output
- Typical shift output frequency: 100MHz
- ESD protection
- Available in DIP16 and SOP16 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC595D280#C51026336GREENMICRO · SOP-16 | GREENMICRO | SOP-16 | 3,000 | ₹7.38 · 3,000 in stock | View |
