GREENMICRODatasheet (PDF)

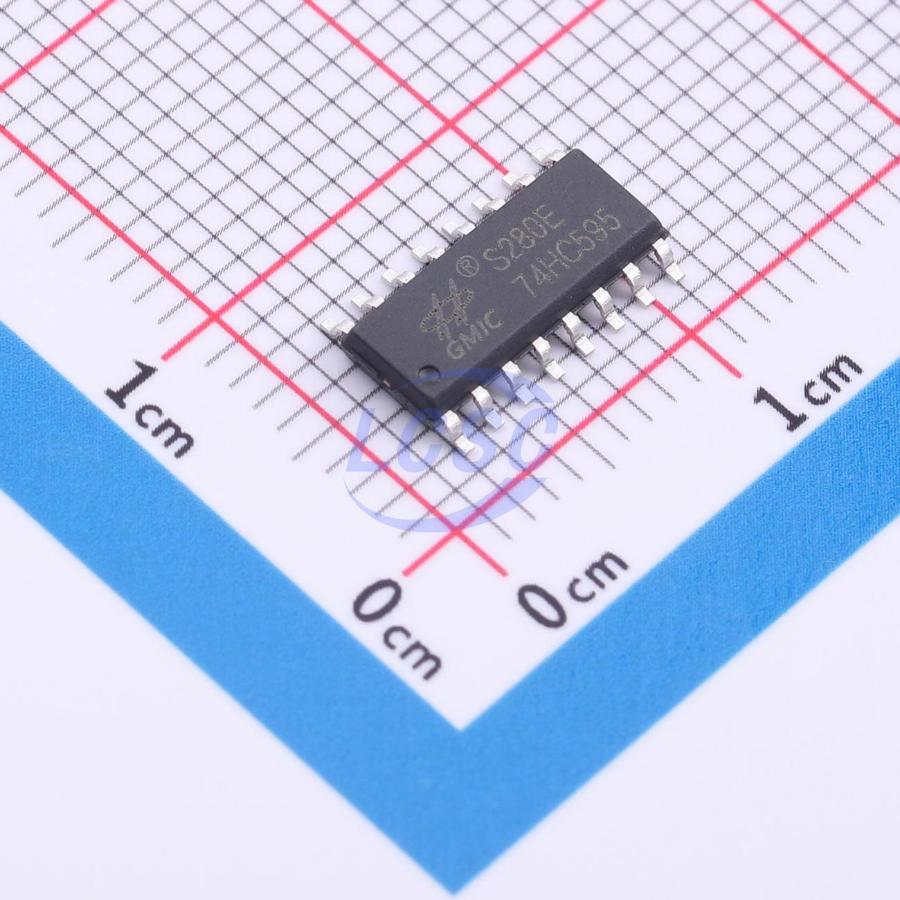

SN74HC595D280
2V~5.5V 1 Serial-to-Serial or Parallel SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SN74HC595D280
- Store part #
- C51026336
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C51026336
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.87 | ₹587.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 2,500+ | ₹4.55 | ₹11,375.00 |
| 5,000+ | ₹4.10 | ₹20,500.00 |
| 10,000+ | ₹3.88 | ₹38,800.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC595D280
₹73.80 for 10 + GST
Specifications
- Operating temperature
- -40℃~+105℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Series
- 74HC
- Number of Elements
- 1
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.298 g
Overview
The 74HC595 is a high-speed silicon-gate CMOS device with pin compatibility with low-power Schottky TTL. The device contains an 8-bit shift register and an 8-bit D-type latch with 3-state parallel outputs. The shift register accepts serial data and provides serial or parallel outputs. The shift register also provides parallel data to the 8-bit latch. The shift register and latch have separate CLK inputs. The device also features an asynchronous reset for the shift register.
Key features
- 8-bit shift register (serial input, serial or parallel output)
- Latch with tri-state output
- Typical shift output frequency: 100MHz
- ESD protection
- Package: DIP16, SOP16
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GM74HC595DR#C49329007GREENMICRO · SOP-16 | GREENMICRO | SOP-16 | 5,870 | ₹14.17 · 5,870 in stock | View |
