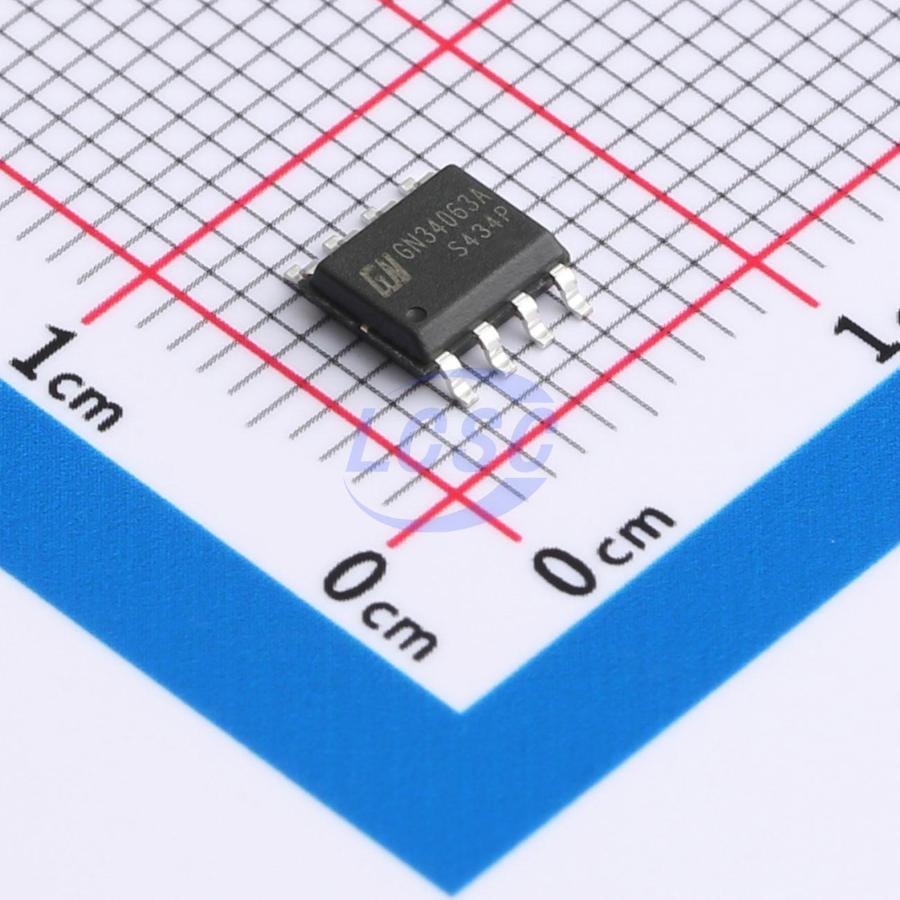

GN Semic

GN34063A

Boost Buck Switching Regulator IC Adjustable 1 Output 1.2A SOP-8

SOP-8RoHSActive

Single Chip DC-DC Converter IC

Manufacturer: GN Semic
Manufacturer part #: GN34063A
Store part #: C22462938
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,735 in stock

#C22462938

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹11.85	₹59.25
50+	₹9.34	₹467.00
150+	₹8.10	₹1,215.00
500+	₹7.16	₹3,580.00
2,500+	₹6.40	₹16,000.00
4,000+	₹6.03	₹24,120.00

Quantity (min 5, multiples of 5)

5 × ₹11.85

₹59.25

excl. GST

₹69.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

GN34063A

₹59.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+85℃@(TA)
Frequency - Switching: 24kHz~42kHz
Function: Step-down type;Boost
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Inverting
Operating Voltage: 3V~32V
Switch tube (built-in/external): Built-in
Output Current: 1.2A
Quiescent Current: 2.5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.167 g

Overview

GN34063A is a monolithic DC-DC converter IC integrating a temperature-compensated reference voltage source (1.25V), comparator, oscillator with effective current limiting and duty cycle control, driver, and high-current output switch transistor. With minimal external components, it can be configured as a boost, buck, or voltage-inverting DC-DC converter.
