GUQIAO MicroelectronicsDatasheet (PDF)

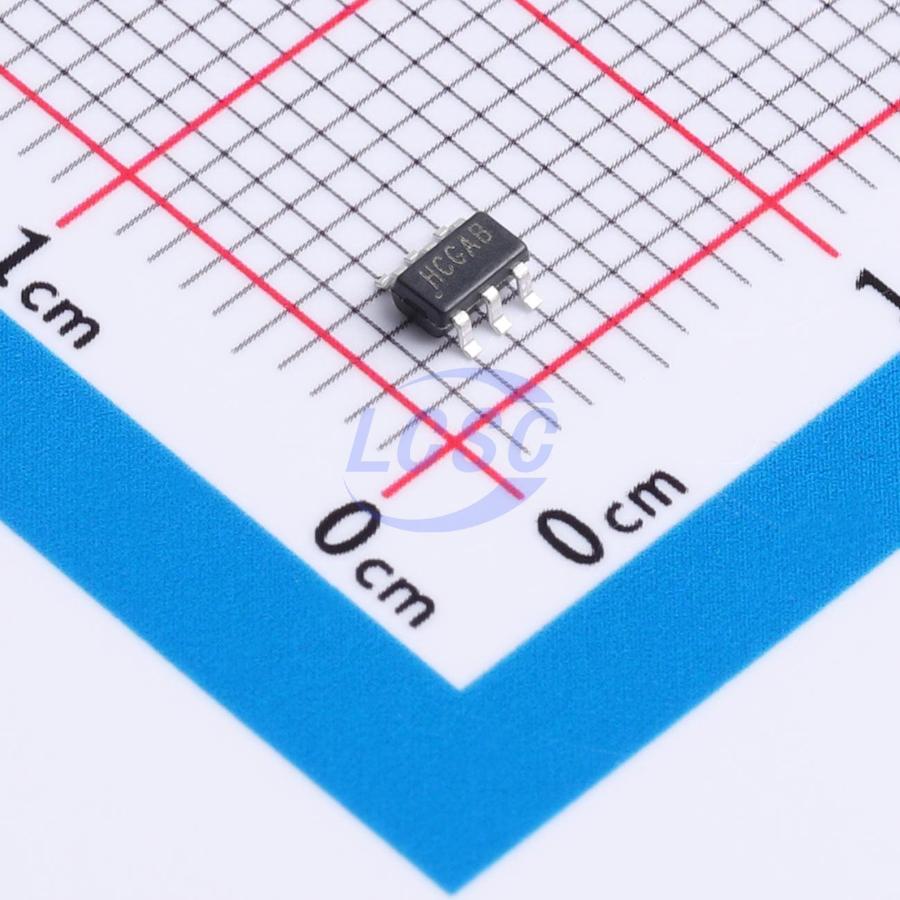

GP3001S01
Step-down type 2MHz Adjustable 800mV~38V 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- GUQIAO Microelectronics
- Manufacturer part #
- GP3001S01
- Store part #
- C48997203
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,635 in stock
#C48997203
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.00 | ₹105.00 |
| 50+ | ₹16.41 | ₹820.50 |
| 150+ | ₹14.43 | ₹2,164.50 |
| 500+ | ₹11.97 | ₹5,985.00 |
| 3,000+ | ₹10.88 | ₹32,640.00 |
| 6,000+ | ₹10.21 | ₹61,260.00 |
5 × ₹21.00
₹105.00
excl. GST
₹123.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GP3001S01
₹105.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~38V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~38V
- Output Current
- 600mA
- Quiescent Current
- 200uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
The GP3001 is a high-efficiency synchronous step-down DC/DC regulator. Its wide input voltage range makes it suitable for a broad range of applications, such as power regulation from unregulated supplies. It employs internal switches with low on-resistance (typical 400mΩ/200mΩ) to achieve high efficiency (typical 93%). PSM mode is supported, and the fixed operating frequency of 2MHz allows the use of small external components while maintaining low output voltage ripple. With overvoltage protection, the IC can withstand input voltages up to 48V. The GP3001 supports 600mA continuous output current with a nominal feedback voltage of 0.8V. Additional features include thermal shutdown, input undervoltage lockout, and gate drive undervoltage lockout. The GP3001 is available in a thin SOT23-6 package.
Applications
- Battery-powered devices
- Portable media players
- Industrial distributed power applications
- Portable handheld instruments
Key features
- Wide 4V to 38V input voltage range
- Withstand voltage: 48V
- 600mA continuous output current
- High efficiency: 93%
- 2MHz switching frequency
- Short-circuit protection with foldback mode
- Built-in overcurrent limiting
- Built-in overvoltage protection
- PSM mode support
- Internal soft-start
- 400mΩ/200mΩ low RDS(on) internal power MOSFETs
- Output voltage adjustable from 0.8V
- No Schottky diode required
- Integrated internal compensation
- Thermal shutdown
- SOT23-6 package
- -40℃ to +85℃ temperature range
