TECH PUBLICDatasheet (PDF)

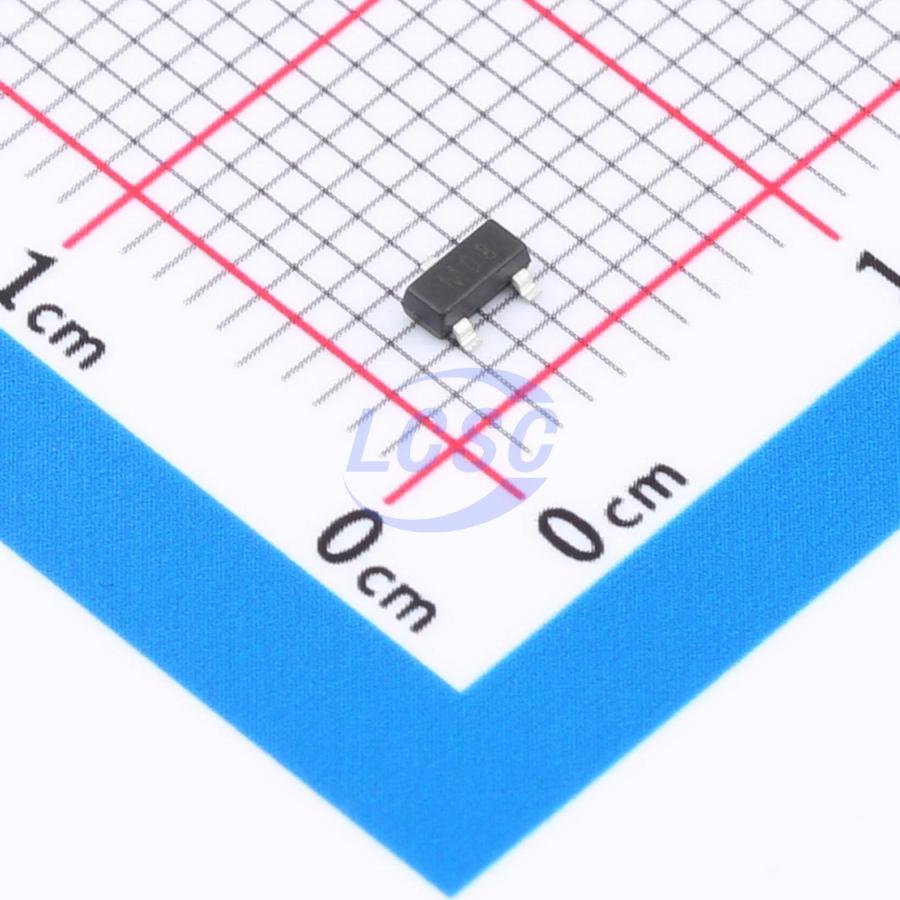

GSOT08C
20VC Clamp 20A@8/20us Ipp SOT-23
SOT-23RoHSActive
8VWM 20VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- GSOT08C
- Store part #
- C48543193
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C48543193
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.97 | ₹59.70 |
| 100+ | ₹4.82 | ₹482.00 |
| 300+ | ₹4.25 | ₹1,275.00 |
| 3,000+ | ₹3.49 | ₹10,470.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.97
₹59.70
excl. GST
₹70.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
GSOT08C
₹59.70 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 10.5V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripheral devices
Key features
- Low operating voltage: 8V
- Peak pulse power (8/20μs): 400W
- Ultra-low leakage current: nA level
- Low clamping voltage
- Compliant with IEC 61000-4-2 (ESD) immunity test standard: air discharge ±30kV, contact discharge ±30kV
- Compliant with IEC 61000-4-4 (EFT) standard: 40A (5/50ns)
- 3-pin leadless package
- Lead-free device
- Typical response time <1 ns
