HXY MOSFETDatasheet (PDF)

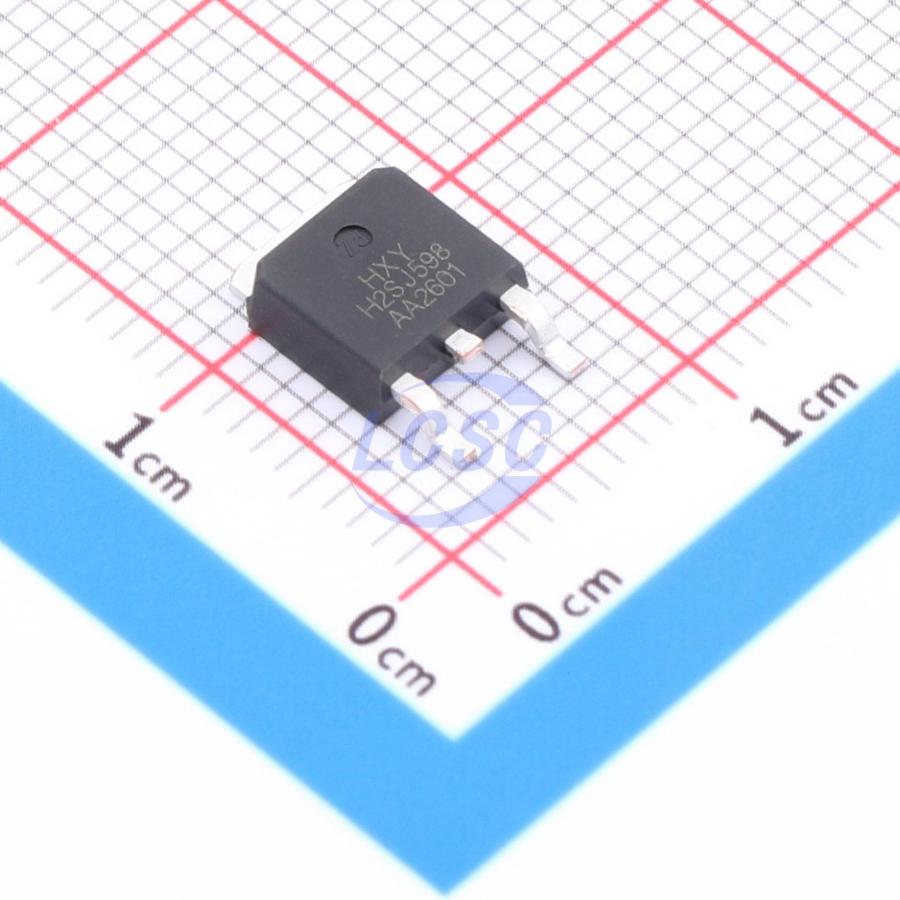

H2SJ598
P-Channel 60V 10A 31.3W Surface Mount TO-252-2L
TO-252-2LROHS CompliantActive
MOSFET P-CH 60V 10A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- H2SJ598
- Store part #
- C42401210
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C42401210
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.53 | ₹197.65 |
| 50+ | ₹31.43 | ₹1,571.50 |
| 150+ | ₹27.97 | ₹4,195.50 |
| 500+ | ₹23.64 | ₹11,820.00 |
| 2,500+ | ₹21.71 | ₹54,275.00 |
| 5,000+ | ₹20.56 | ₹1,02,800.00 |
5 × ₹39.53
₹197.65
excl. GST
₹233.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
H2SJ598
₹197.65 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 51pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 715pF
- Pd - Power Dissipation
- 25W
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.85nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.386 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD25DP06NM-HXY#C20606266HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 3 | ₹68.85 · 3 in stock | View |
 | DMP6185SK3-HXY#C22366771HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 25 | ₹31.18 · 25 in stock | View |
 | AUIRFR9024N-HXY#C22366773HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 133 | ₹57.89 · 133 in stock | View |
 | NTD2955-HXY#C22366774HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹49.35 · 40 in stock | View |
 | STP607D-HXY#C22366775HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹22.95 · 15 in stock | View |
