R+ODatasheet (PDF)

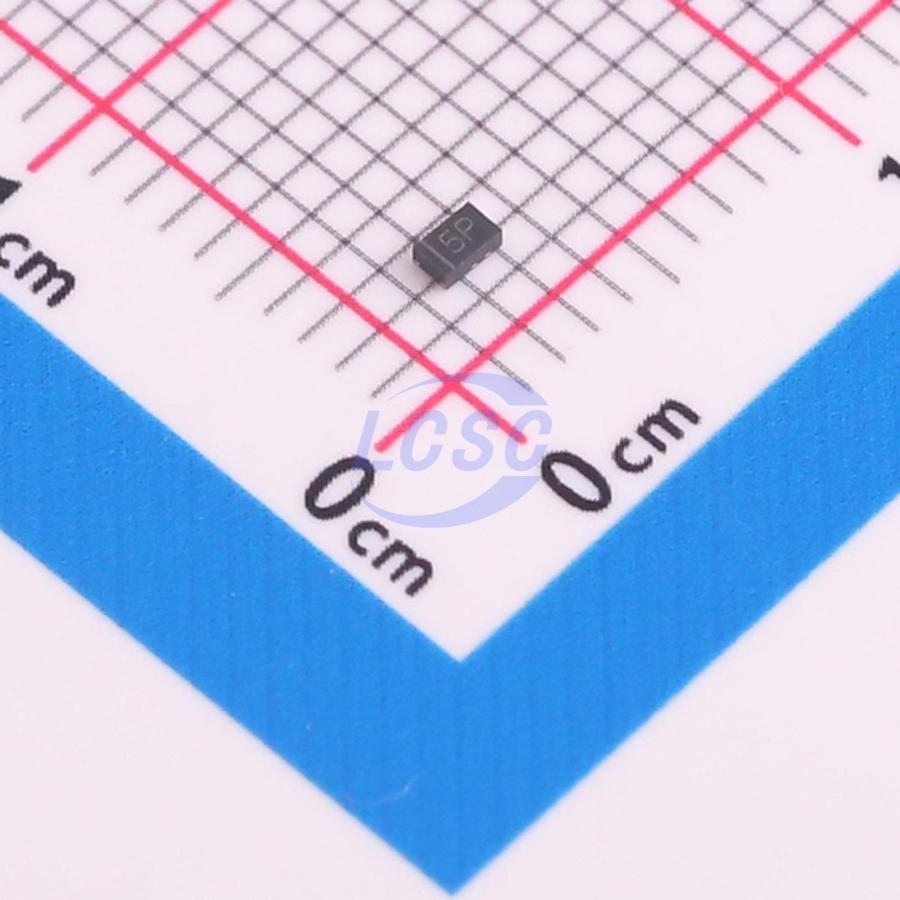

H5VH16U
15VC Clamp 130A@8/20us Ipp ESD DIODE DFN1610-2L
DFN1610-2LROHS CompliantActive
ESD DIODE 5VWM 15VC DFN1610-2L
- Manufacturer
- R+O
- Manufacturer part #
- H5VH16U
- Store part #
- C20617913
- Package / case
- DFN1610-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,480 in stock
#C20617913
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.71 | ₹77.10 |
| 100+ | ₹6.11 | ₹611.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.23 | ₹25,380.00 |
| 9,000+ | ₹4.00 | ₹36,000.00 |
10 × ₹7.71
₹77.10
excl. GST
₹90.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
H5VH16U
₹77.10 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 130A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.95kW@8/20us
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Mobile Phones & Accessories
- Display Port
- MDDI Port
- USB Port
Key features
- Low leakage current
- DFN1610-2L surface mount package
- IEC 61000-4-2 (ESD air discharge): ±30kV
- IEC 61000-4-2 (ESD contact discharge): ±30kV
- IEC 61000-4-5 (surge 8/20μs): 130A
