HAQ36-02HTG

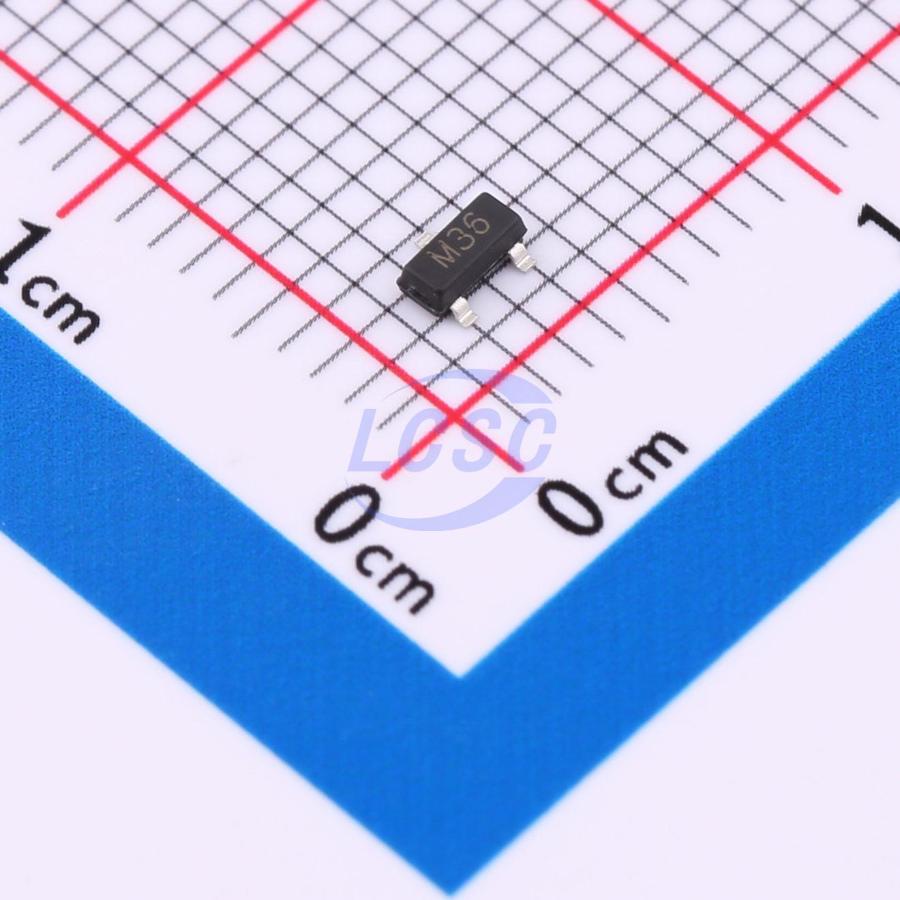

75VC Clamp 5A Ipp ESD DIODE SOT-23
ESD DIODE 36VWM 75VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HAQ36-02HTG
- Store part #
- C22439927
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C22439927
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.53 | ₹55.30 |
| 100+ | ₹4.38 | ₹438.00 |
| 300+ | ₹3.80 | ₹1,140.00 |
| 3,000+ | ₹3.36 | ₹10,080.00 |
| 6,000+ | ₹3.02 | ₹18,120.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
10 × ₹5.53
₹55.30
excl. GST
₹65.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HAQ36-02HTG
₹55.30 for 10 + GST
Specifications
- Clamping Voltage
- 75V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 40V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview
The HAQ36-02HTG protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect two unidirectional lines in applications where arrays are not suitable.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 36V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
