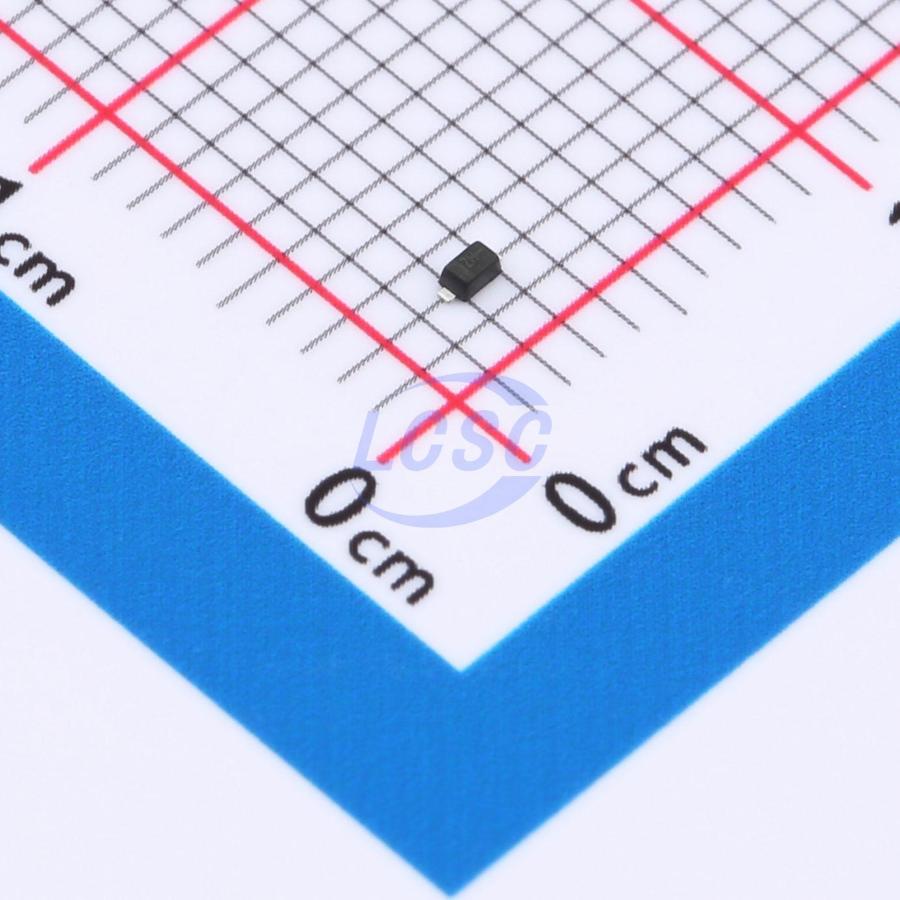

HAZ4007-01H
13.5VC 22.7VC Clamp 7A Ipp ESD DIODE SOD-523
ESD DIODE 7VWM 13.5VC 22.7VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HAZ4007-01H
- Store part #
- C22440201
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22440201
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.49 | ₹52.45 |
| 50+ | ₹8.32 | ₹416.00 |
| 150+ | ₹7.24 | ₹1,086.00 |
| 500+ | ₹6.43 | ₹3,215.00 |
| 3,000+ | ₹5.77 | ₹17,310.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
5 × ₹10.49
₹52.45
excl. GST
₹61.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HAZ4007-01H
₹52.45 for 5 + GST
Specifications
- Clamping Voltage
- 13.5V;22.7V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 7A
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Voltage - Breakdown
- 7.5V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
HAZ4007-01H is designed to protect sensitive semiconductor components from damage or disruption caused by ESD and other voltage transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. The device offers designers flexibility to protect a single unidirectional line in applications where an array is not suitable. Available in SOD-523 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): contact discharge ±8kV, air discharge ±15kV; compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 200W (8/20us)
- Working voltage: 7V
- Protects one power or data line
- Low clamping voltage
- Low leakage current
Alternatives
Similar parts — check the datasheet before substituting.
