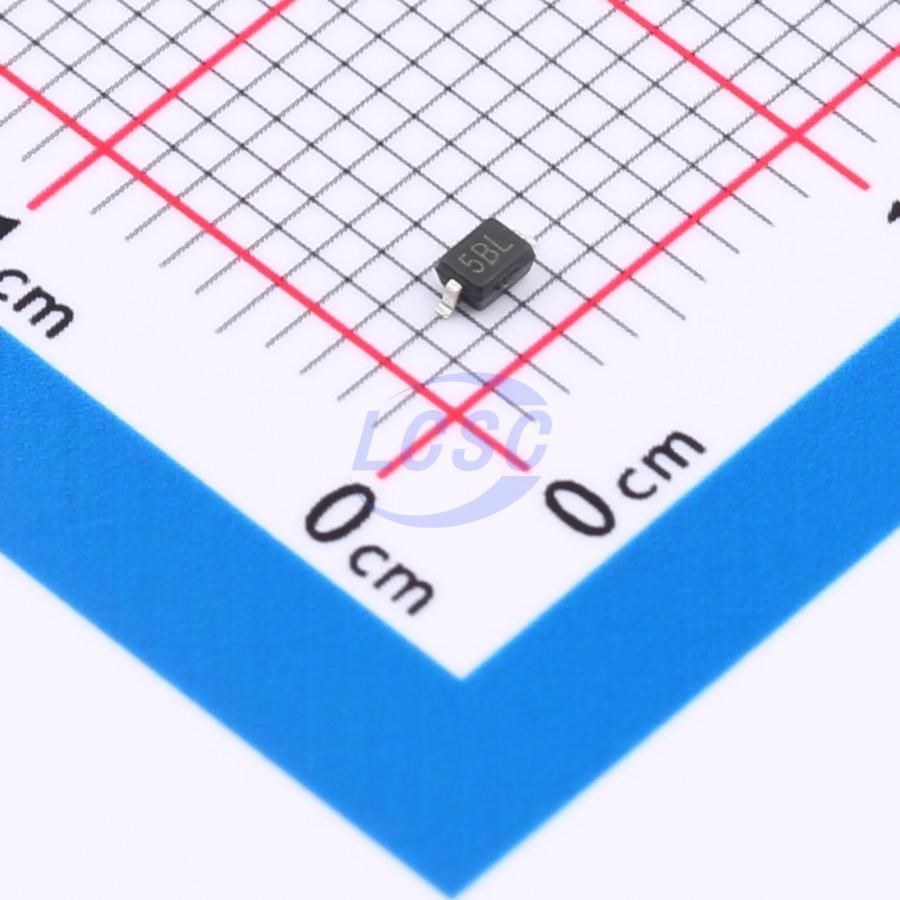

HBV05C-H
25VC Clamp 4A Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 25VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HBV05C-H
- Store part #
- C22439984
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C22439984
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.39 | ₹51.95 |
| 50+ | ₹8.22 | ₹411.00 |
| 150+ | ₹7.12 | ₹1,068.00 |
| 500+ | ₹6.31 | ₹3,155.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.33 | ₹31,980.00 |
5 × ₹10.39
₹51.95
excl. GST
₹61.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HBV05C-H
₹51.95 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
The HBV05C-H protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are impractical. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±8kV (contact discharge) and ±15kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns).
- Peak power dissipation: 100W (8/20us).
- Working voltage: 5V.
- Protects one Vcc or data line.
- Low clamping voltage.
- Low leakage current.
