HXY MOSFETDatasheet (PDF)

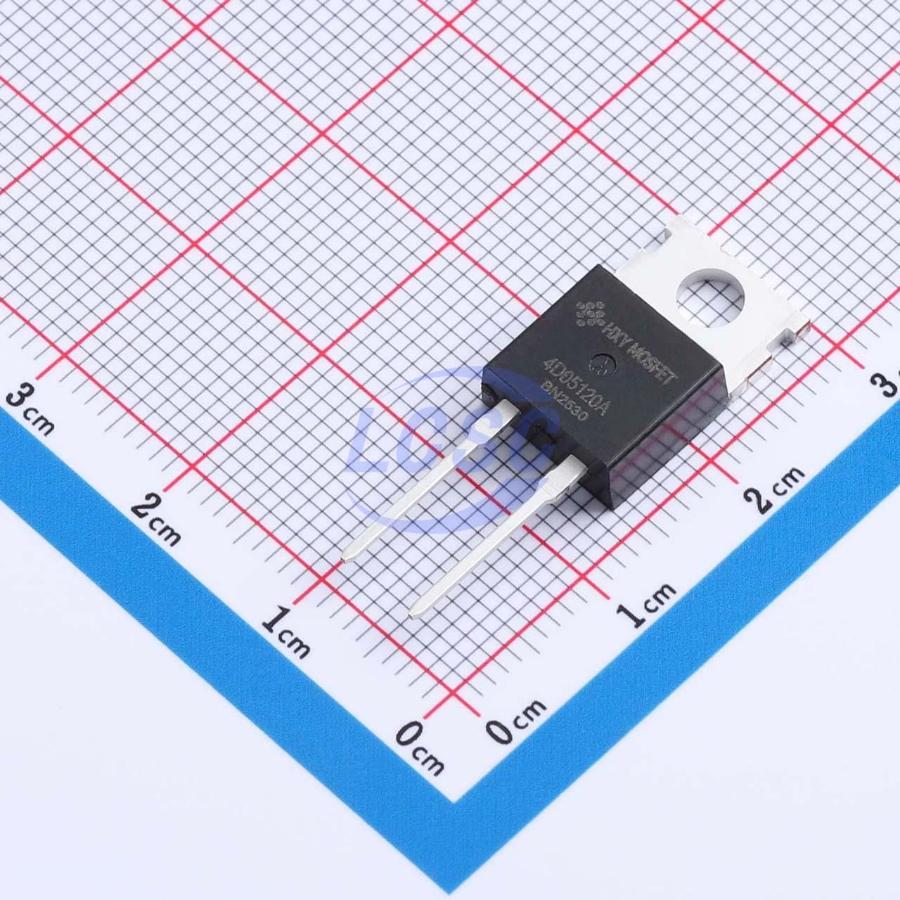

HC4D05120A
SiC Diode Independent 1200V Through Hole TO-220-2L
TO-220-2LRoHSActive
DIODE SIC 1.2kV TO-220-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HC4D05120A
- Store part #
- C19723882
- Package / case
- TO-220-2L
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
203 in stock
#C19723882
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.69 | ₹152.69 |
| 10+ | ₹126.81 | ₹1,268.10 |
| 50+ | ₹109.41 | ₹5,470.50 |
| 100+ | ₹93.31 | ₹9,331.00 |
| 500+ | ₹86.14 | ₹43,070.00 |
| 1,000+ | ₹82.87 | ₹82,870.00 |
1 × ₹152.69
₹152.69
excl. GST
₹180.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HC4D05120A
₹152.69 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.8V@5A
- Reverse Leakage Current (Ir)
- 150uA@1200V
- Current - Rectified
- 19A
- Non-Repetitive Peak Forward Surge Current
- 400A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
Applications
- Switch-mode power supplies
- Boost diode in power factor correction or DC/DC conversion stages
- Freewheeling diode in inverter stages
- AC/DC converters
Key features
- 1.2kV Schottky Rectifier
- Zero reverse recovery current
- High-frequency operation
- Temperature-independent switching
- Extremely fast switching
- Positive temperature coefficient of forward voltage VF
