HXY MOSFETDatasheet (PDF)

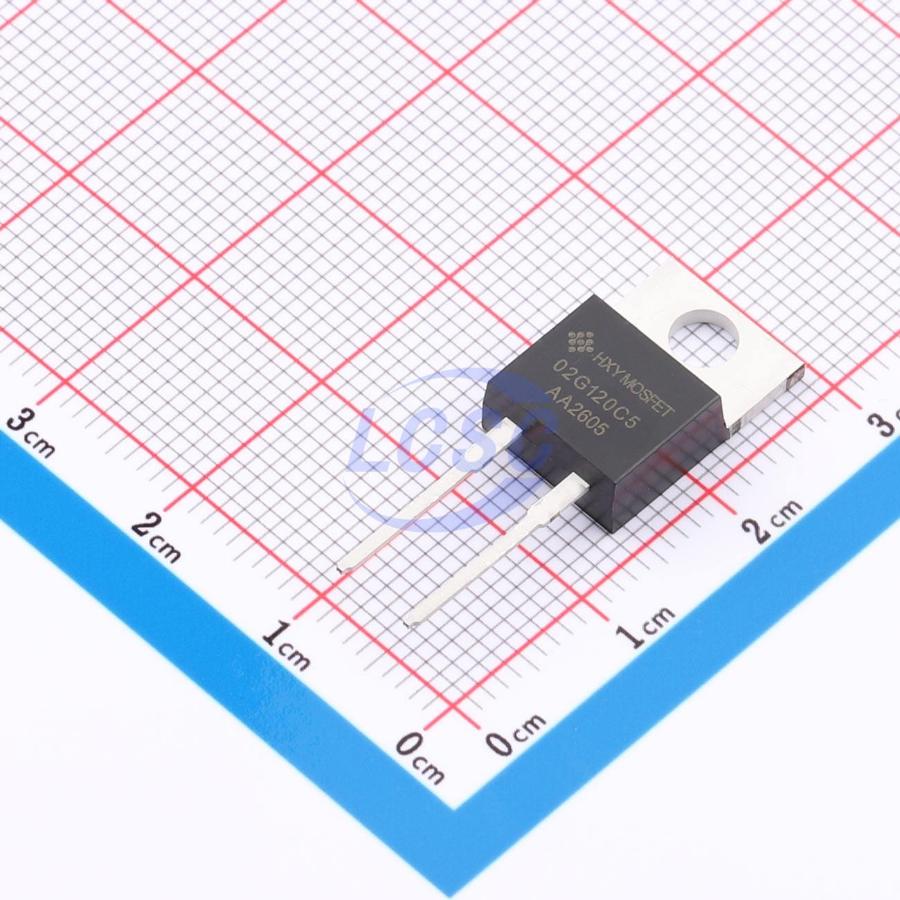

IDH02G120C5-HXY
SiC Diode 1200V Through Hole TO-220-2L
TO-220-2LROHS CompliantActive
DIODE SIC 1.2kV TO-220-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IDH02G120C5-HXY
- Store part #
- C45896870
- Package / case
- TO-220-2L
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
235 in stock
#C45896870
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.70 | ₹261.70 |
| 10+ | ₹222.46 | ₹2,224.60 |
| 50+ | ₹197.96 | ₹9,898.00 |
| 100+ | ₹172.81 | ₹17,281.00 |
| 500+ | ₹161.54 | ₹80,770.00 |
| 1,000+ | ₹156.55 | ₹1,56,550.00 |
1 × ₹261.70
₹261.70
excl. GST
₹308.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IDH02G120C5-HXY
₹261.70 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 1.4V@5A
- Reverse Leakage Current (Ir)
- 100uA@1200V
- Current - Rectified
- 18A
- Non-Repetitive Peak Forward Surge Current
- 45A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5.18 g
