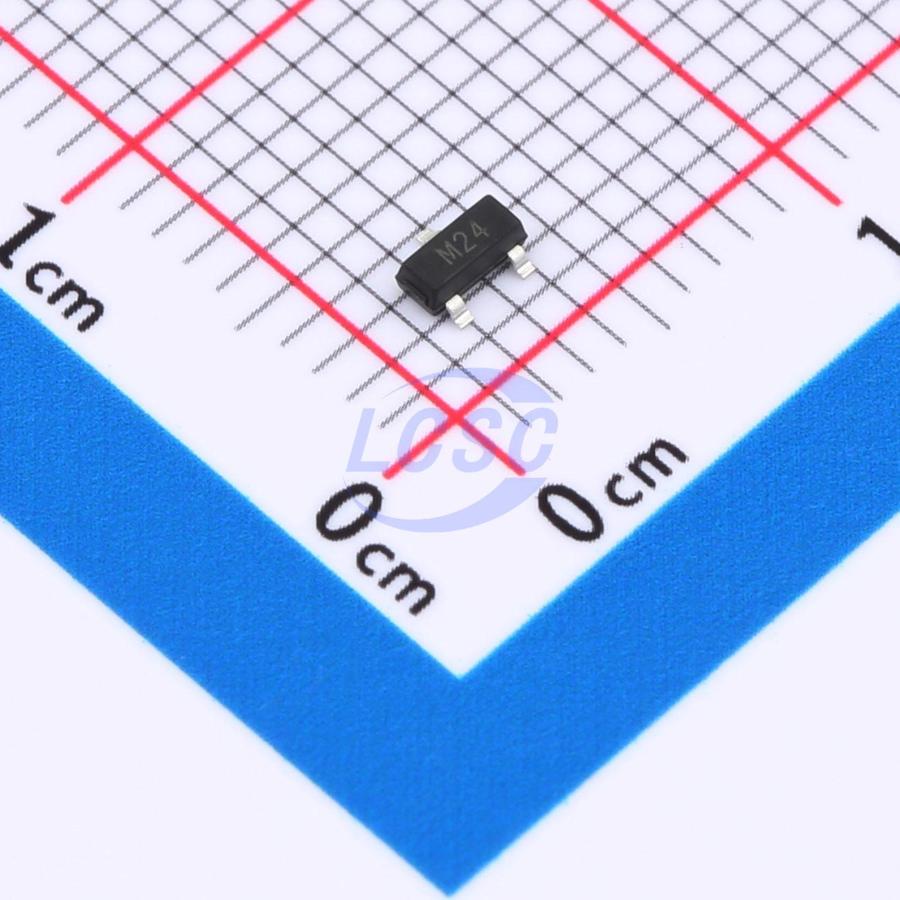

HCEST23NC24VU
50VC Clamp 2A@8/20us Ipp ESD DIODE SOT-23
ESD DIODE 24VWM 50VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HCEST23NC24VU
- Store part #
- C22439975
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22439975
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.16 | ₹51.60 |
| 100+ | ₹4.07 | ₹407.00 |
| 300+ | ₹3.53 | ₹1,059.00 |
| 3,000+ | ₹3.14 | ₹9,420.00 |
| 6,000+ | ₹2.80 | ₹16,800.00 |
| 9,000+ | ₹2.65 | ₹23,850.00 |
10 × ₹5.16
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HCEST23NC24VU
₹51.60 for 10 + GST
Specifications
- Clamping Voltage
- 50V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
HCEST23NC24VU protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. The device offers designers flexibility to protect two unidirectional lines in applications where arrays are not suitable. SOT-23 package.
Key features
- RoHS-compliant and halogen-free materials.
- Unidirectional transient suppression.
- Low leakage current: IR max < 20 μA at VRM.
- 300W peak pulse power (8/20μs waveform).
- Transient protection for data lines, compliant with:
- IEC61000-4-2 (ESD) 15KV (air discharge) 8KV (contact discharge).
- IEC61000-4-5 (lightning surge), refer to IPPM parameters for details.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HESD24VS2UE6327#C22439931HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 520 | ₹5.21 · 520 in stock | View |
 | STS232240U301-HXY#C42416228HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 5 | ₹12.85 · 5 in stock | View |
