HXY MOSFETDatasheet (PDF)

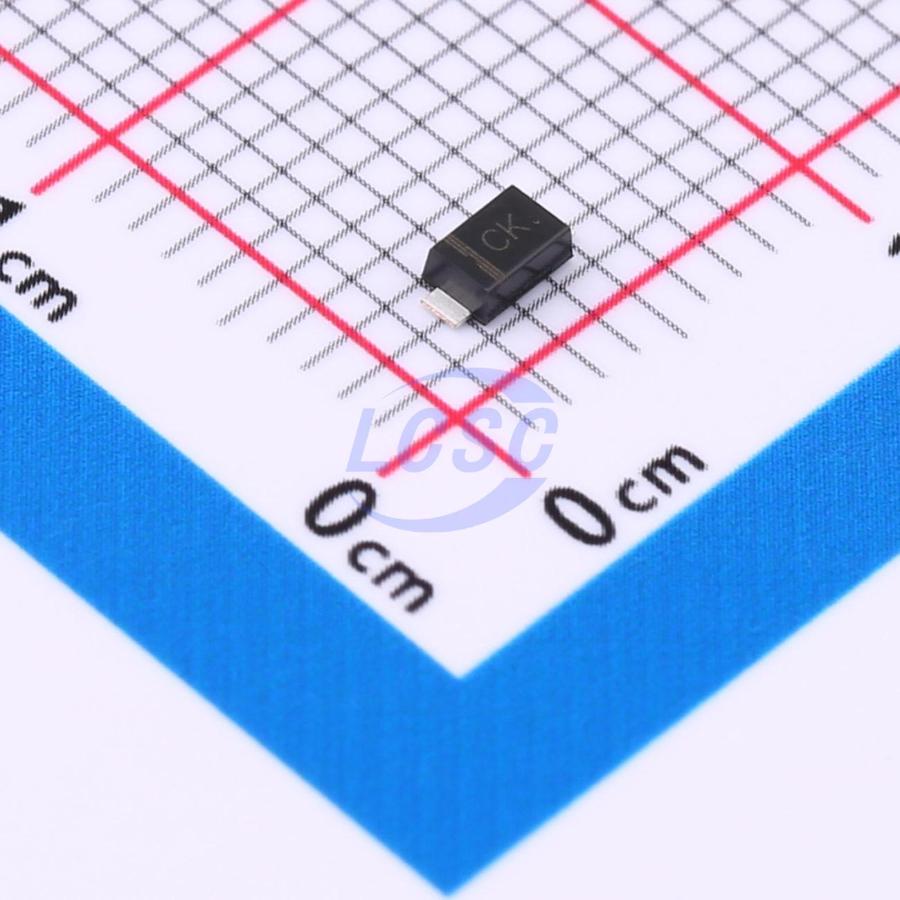

HDFLT30A7
48.4VC Clamp 4.1A Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 30VWM 48.4VC SOD-123FL
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HDFLT30A7
- Store part #
- C42401926
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C42401926
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.68 | ₹78.40 |
| 50+ | ₹12.62 | ₹631.00 |
| 150+ | ₹11.10 | ₹1,665.00 |
| 500+ | ₹9.96 | ₹4,980.00 |
| 3,000+ | ₹9.04 | ₹27,120.00 |
| 6,000+ | ₹8.59 | ₹51,540.00 |
5 × ₹15.68
₹78.40
excl. GST
₹92.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HDFLT30A7
₹78.40 for 5 + GST
Specifications
- Clamping Voltage
- 48.4V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 4.1A
- Peak Pulse Power Dissipation (Ppp)
- 200W
- Number of Channels
- 1
- Voltage - Breakdown
- 36.8V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- I/O Interface
- AC/DC Power Supply
- Low-Frequency Signal Transmission Line
Key features
- Surface mount application, optimized PCB space utilization.
- Low profile package.
- Glass passivated junction.
- Low inductance.
- Plastic package complies with UL flammability standard.
- Case: SOD-123FL/SMF molded plastic case per JEDEC standards.
- Terminals: Solderable per Method 2026A.
- Polarity: Polarity symbol marked on case.
- Mounting position: Any.
- Weight: 0.007 oz, 0.02 g.
- Marking: See date code and marking code on page 2.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSMF30AT13#C42401981HXY MOSFET · SOD-123FL | HXY MOSFET | SOD-123FL | 40 | ₹3.93 · 40 in stock | View |
 | HSMF30ATP#C42402064HXY MOSFET · SOD-123FL | HXY MOSFET | SOD-123FL | 170 | ₹10.69 · 170 in stock | View |
 | SMF30A#C7466394HXY MOSFET · SOD-123FL | HXY MOSFET | SOD-123FL | 2,180 | ₹3.18 · 2,180 in stock | View |
 | HSMF30AT1G#C42401866HXY MOSFET · SOD-123FL | HXY MOSFET | SOD-123FL | 100 | ₹27.08 · 100 in stock | View |
 | HSMF28AT13#C42401917HXY MOSFET · SOD-123FL | HXY MOSFET | SOD-123FL | 180 | ₹3.57 · 180 in stock | View |
