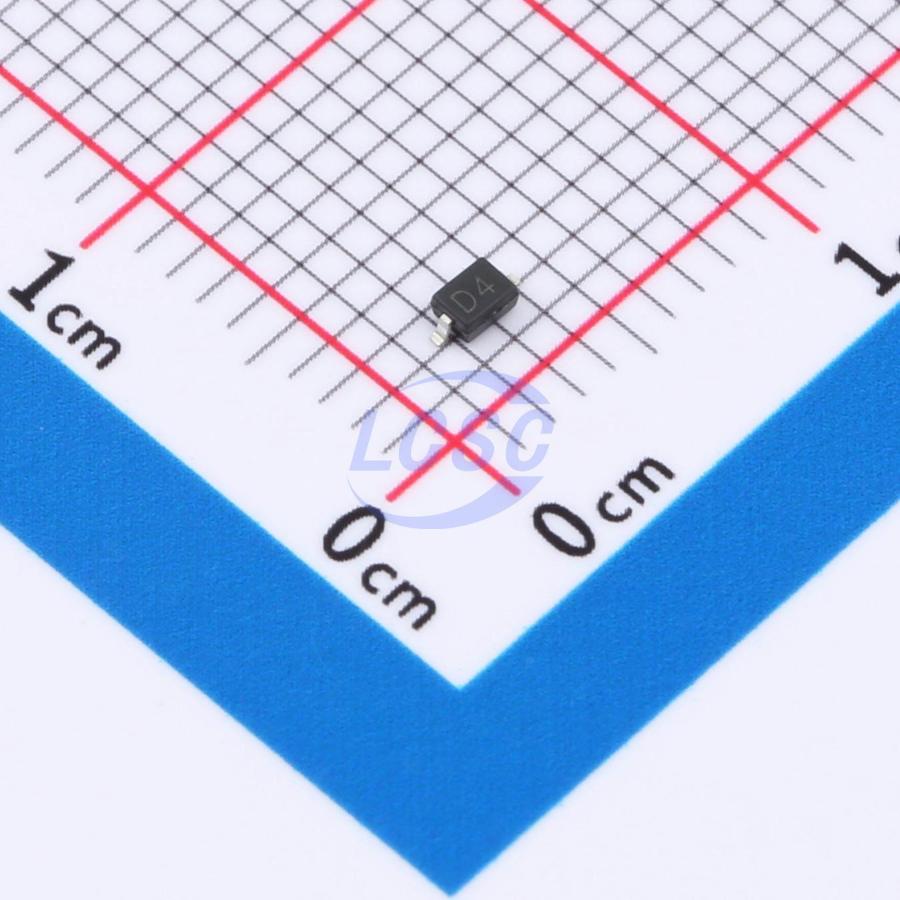

HDSD4V5TC
20VC Clamp 160A Ipp ESD DIODE SOD-323
ESD DIODE 4.5VWM 20VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HDSD4V5TC
- Store part #
- C22439720
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C22439720
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.50 | ₹115.00 |
| 100+ | ₹9.42 | ₹942.00 |
| 300+ | ₹8.37 | ₹2,511.00 |
| 3,000+ | ₹6.72 | ₹20,160.00 |
| 6,000+ | ₹6.10 | ₹36,600.00 |
| 9,000+ | ₹5.78 | ₹52,020.00 |
10 × ₹11.50
₹115.00
excl. GST
₹135.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HDSD4V5TC
₹115.00 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 160A
- Peak Pulse Power Dissipation (Ppp)
- 3.2kW@8/20us
- Voltage - Breakdown
- 5.2V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 4.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
The HDSD4V5TC device protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. The device offers designers the flexibility to protect a single bidirectional line in applications where an array is impractical. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50 ns pulse)
- Peak power dissipation: 3200W (8/20us pulse)
- Operating voltage: 4.5V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
