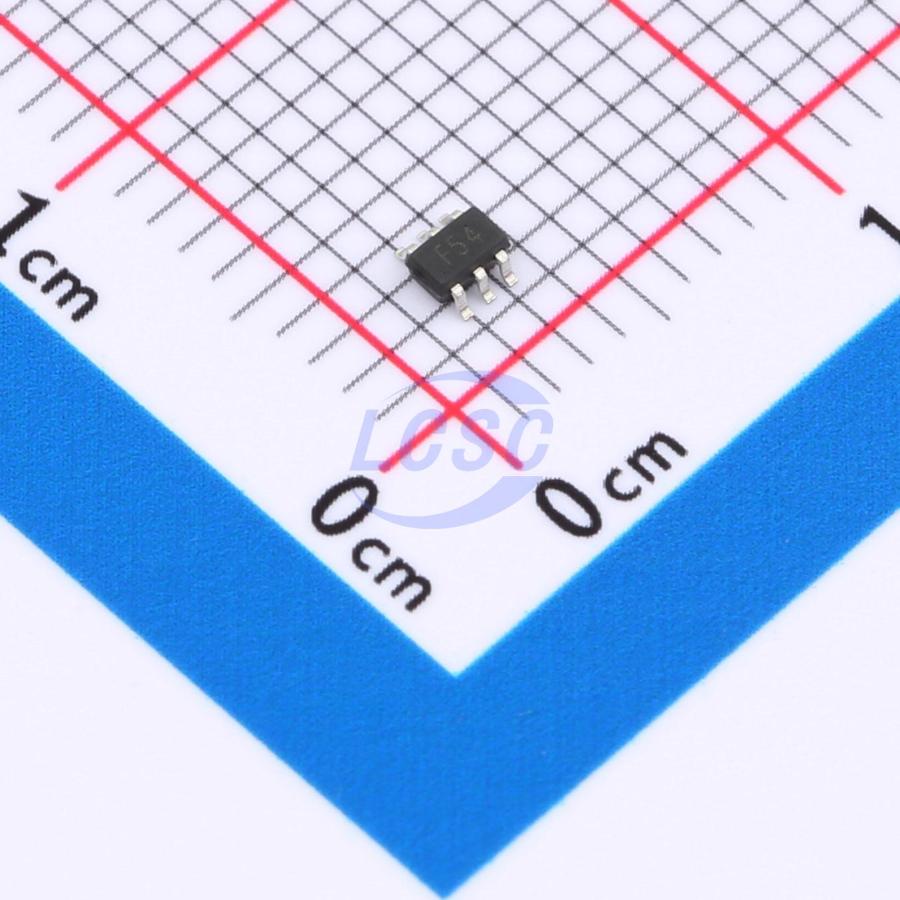

HDT1446-04S-7
13VC 1.8VC Clamp 4A Ipp ESD DIODE SOT-363
ESD DIODE 5VWM 13VC 1.8VC SOT-363
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HDT1446-04S-7
- Store part #
- C22440081
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C22440081
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.64 | ₹96.40 |
| 100+ | ₹7.71 | ₹771.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹6.03 | ₹18,090.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
| 9,000+ | ₹5.16 | ₹46,440.00 |
10 × ₹9.64
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HDT1446-04S-7
₹96.40 for 10 + GST
Specifications
- Clamping Voltage
- 13V;1.8V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 55W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 5
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
HDT1446-04S-7 is a 5-channel ultra-low capacitance rail-clamp ESD protection diode array. Each channel consists of a pair of ESD diodes that steer positive or negative ESD current to the positive or negative supply rail. A Zener diode is integrated in the array between the positive and negative supply rails. In a typical application, the negative supply rail pin (designated GND) is connected to system ground. Positive ESD current is steered to ground through one ESD diode and the Zener diode, and the positive ESD voltage is clamped to the Zener voltage.
Key features
- 5-channel ESD protection
- ESD protection compliant with IEC61000-4-2 Level 4
- Low clamping voltage
- Low operating voltage
- Improved Zener structure
- Optimized package for high-speed data line PCB layout
- RoHS compliant
