HEERMICRDatasheet (PDF)

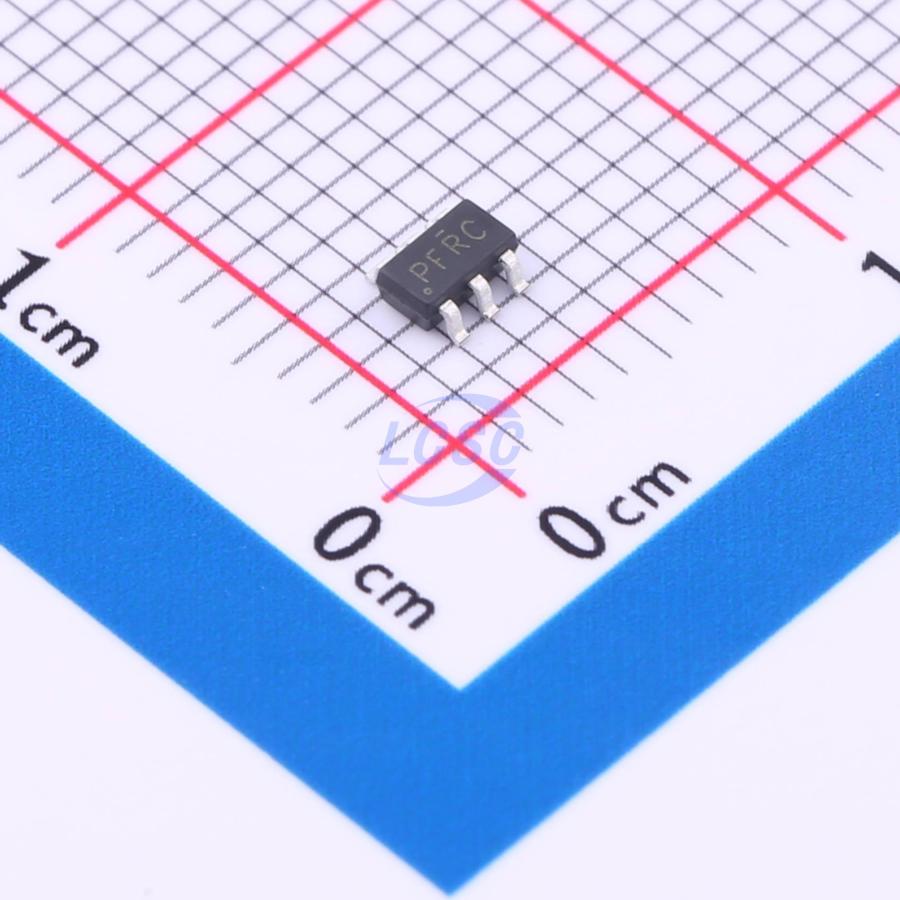

HE9810M6R
1.4MHz Boost Adjustable 600mV~24V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
24V Output 1.4MHz Boost Regulator
- Manufacturer
- HEERMICR
- Manufacturer part #
- HE9810M6R
- Store part #
- C5123435
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,725 in stock
#C5123435
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.54 | ₹157.70 |
| 50+ | ₹25.00 | ₹1,250.00 |
| 150+ | ₹22.20 | ₹3,330.00 |
| 500+ | ₹18.71 | ₹9,355.00 |
| 3,000+ | ₹15.37 | ₹46,110.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹31.54
₹157.70
excl. GST
₹186.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HE9810M6R
₹157.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1.4MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~24V
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
A constant frequency, current mode stepup converter intended for small, low power applications. Switches at 1.4MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. Includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. Available in a small 6-pin SOT-23 package.
Applications
- Digital Set-top Box (STB)
- Tablet Personal Computer (Pad)
- LCD Bias Supply
- Battery-Powered Equipment
- Portable Media Player (PMP)
- General Purposes
Key features
- 2V to 24V Input Voltage
- Up to 24V Output Voltage
- Integrated 80mΩ Power MOSFET
- 1.4MHz Fixed Switching Frequency
- Internal 3.5A Switch Current Limit
- Internal Compensation
- Thermal Shutdown
- Output Adjustable from 0.6V
- Available in a 6-pin SOT-23 package
