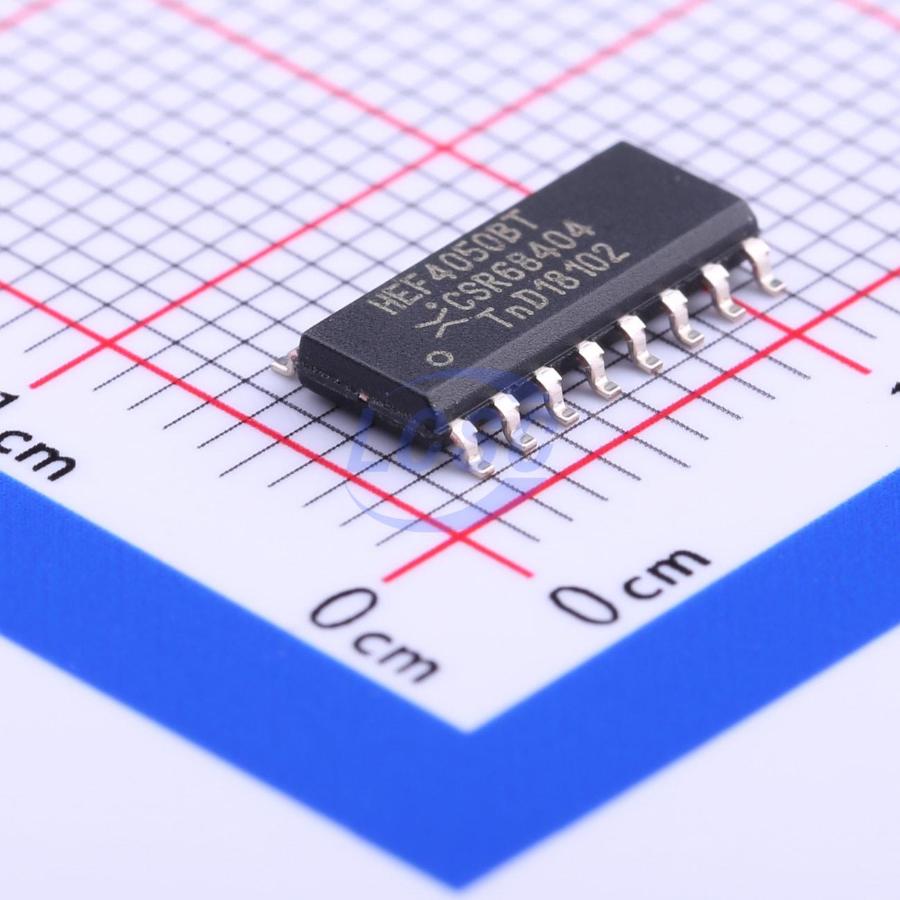

HEF4050BT,653
3V~15V 1 6 35ns@5V,50pF SOIC-16 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
Hex non-inverting buffers
- Manufacturer
- Nexperia
- Manufacturer part #
- HEF4050BT,653
- Store part #
- C118326
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,065 in stock
#C118326
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.48 | ₹227.40 |
| 50+ | ₹35.63 | ₹1,781.50 |
| 150+ | ₹31.41 | ₹4,711.50 |
| 500+ | ₹26.14 | ₹13,070.00 |
| 2,500+ | ₹23.80 | ₹59,500.00 |
| 5,000+ | ₹22.40 | ₹1,12,000.00 |
5 × ₹45.48
₹227.40
excl. GST
₹268.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HEF4050BT,653
₹227.40 for 5 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 3mA
- Series
- 4000B
- Voltage - Supply
- 3V~15V
- Current - Output Low(IOL)
- 20mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 30uA
- Propagation Delay
- 35ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.275 g
Overview
The HEF4050B provides six non-inverting buffers with high current output capability suitable for driving TTL or high capacitive loads. Since input voltages in excess of the buffers' supply voltage are permitted, the buffers may also be used to convert logic levels of upto 15 V to standard TTL levels. It operates over a recommended VDD power supply range of 2 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, Vss, or another input.
Applications
- LOCMOS (Local Oxidation CMOS) to DTL/TTL converter
- HIGH sink current for driving two TTL loads
- HIGH-to-LOW level logic conversion
Key features
- Accepts input voltages in excess of the supply voltage
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40 °C to +85 °C
- Complies with JEDEC standard JESD 13-B
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4050BM(LX)#C22397245lingxingic · SOP-16 | lingxingic | SOP-16 | 145 | ₹19.58 · 145 in stock | View |
 | CD4010BQDRQ1#C2861741TI · SOIC-16 | TI | SOIC-16 | 270 | ₹73.45 · 270 in stock | View |
 | MC14050BDR2G#C233573onsemi · SOIC-16 | onsemi | SOIC-16 | 4,265 | ₹37.69 · 4,265 in stock | View |
| CD4050BDWR#C2676056TI · SOIC-16 | TI | SOIC-16 | 123 | ₹78.37 · 123 in stock | View | |
| HEF4050BT-Q100J#C545796Nexperia · SO-16 | Nexperia | SO-16 | On request | ₹77.40 · 0 in stock | View | |
