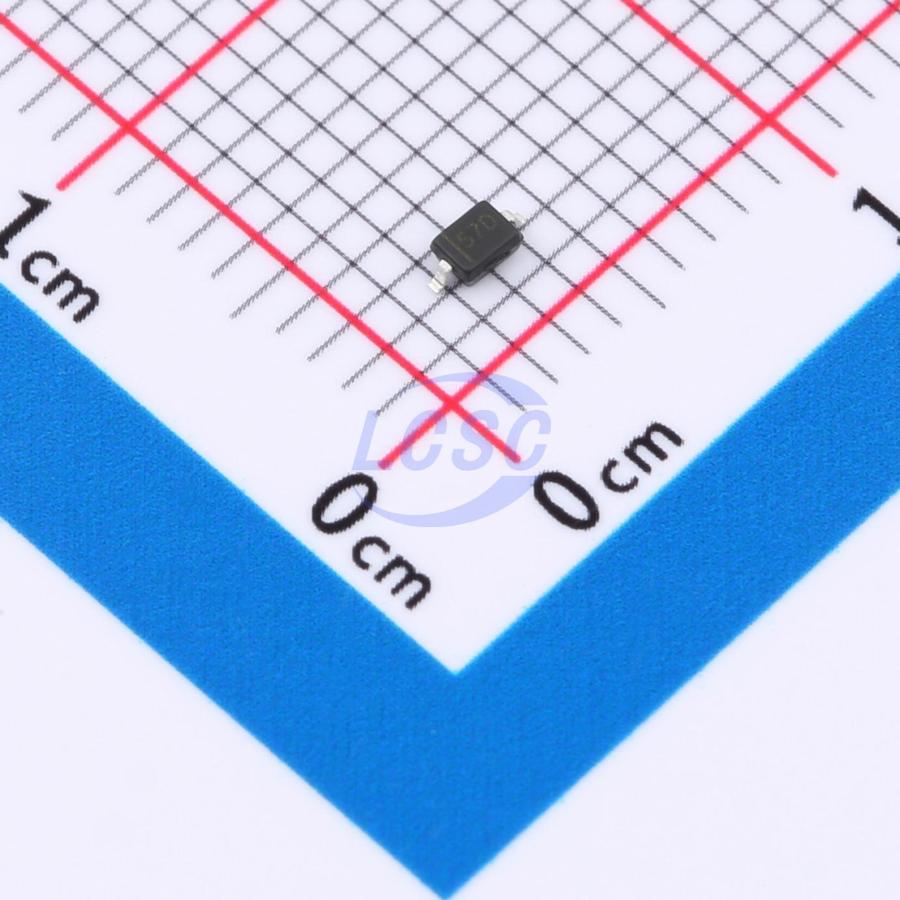

HESD5621W15-2/TR
30VC Clamp 60A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 30VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESD5621W15-2/TR
- Store part #
- C22439920
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22439920
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.37 | ₹51.85 |
| 50+ | ₹8.10 | ₹405.00 |
| 150+ | ₹6.96 | ₹1,044.00 |
| 500+ | ₹6.10 | ₹3,050.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹5.08 | ₹30,480.00 |
5 × ₹10.37
₹51.85
excl. GST
₹61.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HESD5621W15-2/TR
₹51.85 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 60A
- Peak Pulse Power Dissipation (Ppp)
- 1.8kW@8/20us
- Voltage - Breakdown
- 18V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
HESD5621W15-2/TR protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single unidirectional line, making it suitable for applications where arrays are not practical. Available in SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) ±30kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 1800W (8/20us)
- Working voltage: 15V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
