HESD5Z7V

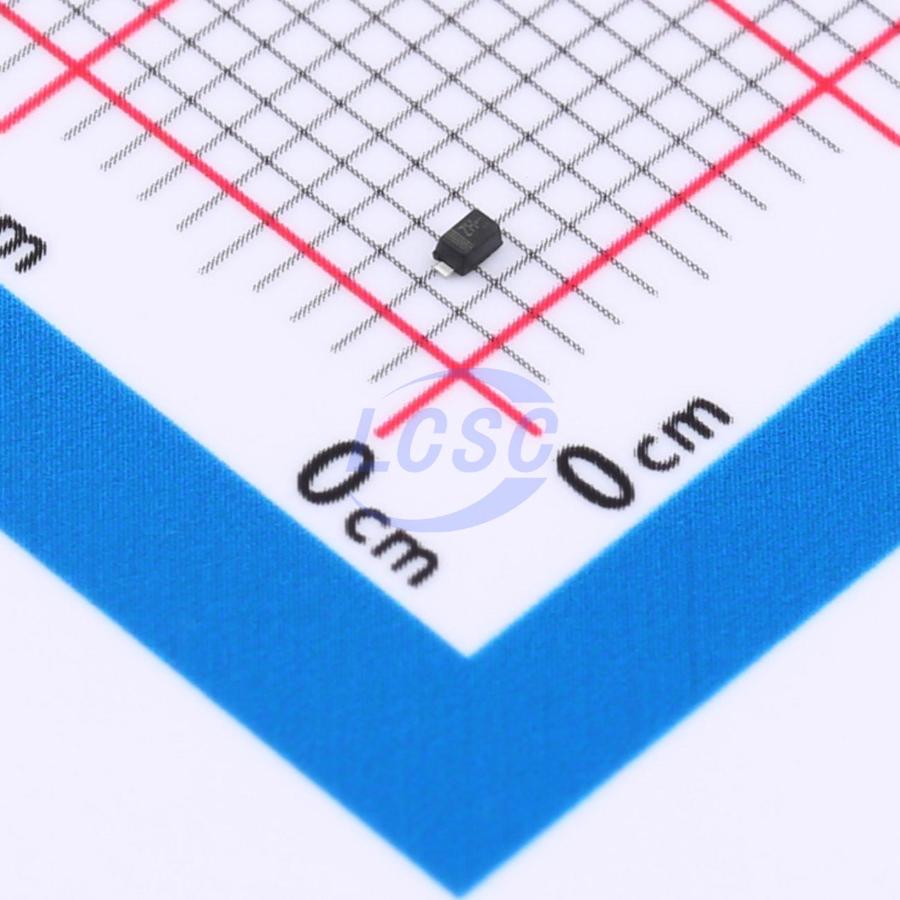

14.5VC Clamp 9A Ipp ESD DIODE SOD-523
ESD DIODE 7VWM 14.5VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESD5Z7V
- Store part #
- C42401959
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C42401959
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.35 | ₹117.50 |
| 500+ | ₹1.84 | ₹920.00 |
| 3,000+ | ₹1.56 | ₹4,680.00 |
| 6,000+ | ₹1.40 | ₹8,400.00 |
| 24,000+ | ₹1.24 | ₹29,760.00 |
| 51,000+ | ₹1.18 | ₹60,180.00 |
50 × ₹2.35
₹117.50
excl. GST
₹138.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HESD5Z7V
₹117.50 for 50 + GST
Specifications
- Clamping Voltage
- 14.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 130W
- Number of Channels
- 1
- Voltage - Breakdown
- 7.5V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.02 g
Overview
The HESD5Z7V device protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. The device offers designers flexibility to protect a single unidirectional line in applications where an array is not suitable. Available in SOD-523 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±8kV (contact discharge) / ±15kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 200W (8/20us)
- Working voltage: 7V
- Protects one power or data line
- Low clamping voltage
- Low leakage current
