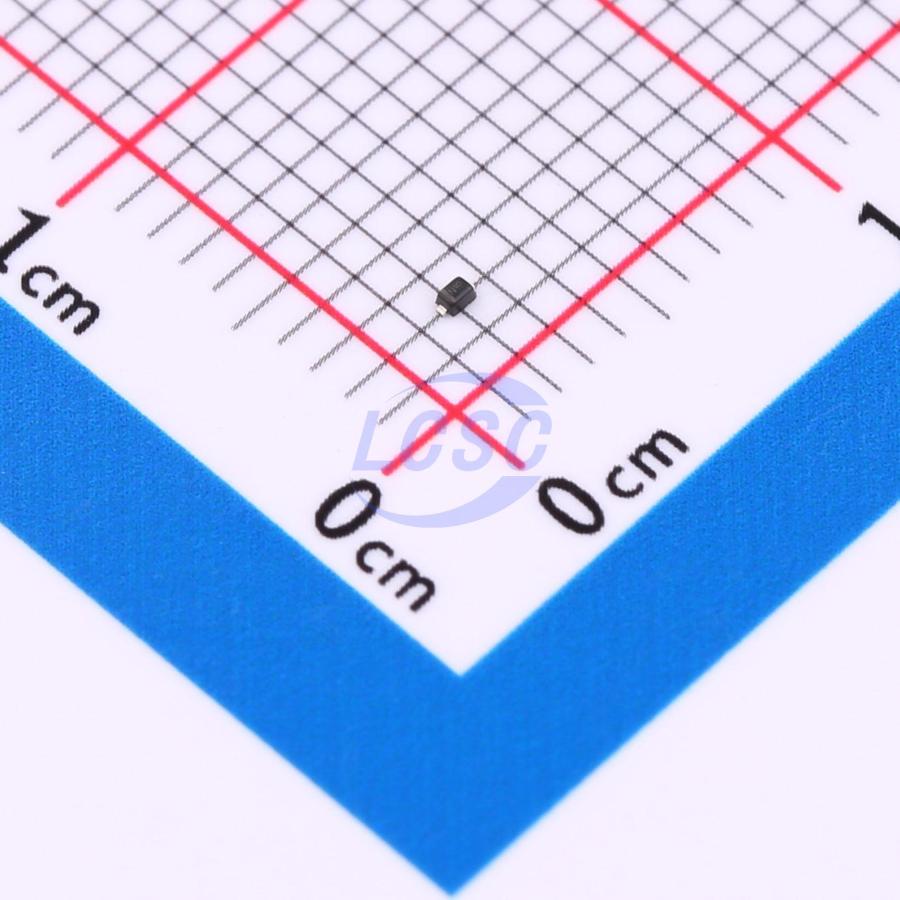

HESD9D5.0ST5G
15VC Clamp 3A Ipp ESD DIODE SOD-923
ESD DIODE 5VWM 15VC SOD-923
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESD9D5.0ST5G
- Store part #
- C22439914
- Package / case
- SOD-923
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C22439914
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.11 | ₹82.20 |
| 200+ | ₹3.20 | ₹640.00 |
| 600+ | ₹2.70 | ₹1,620.00 |
| 2,000+ | ₹2.39 | ₹4,780.00 |
| 8,000+ | ₹2.14 | ₹17,120.00 |
| 16,000+ | ₹2.00 | ₹32,000.00 |
20 × ₹4.11
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
HESD9D5.0ST5G
₹82.20 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 3A
- Peak Pulse Power Dissipation (Ppp)
- 45W@8/20us
- Voltage - Breakdown
- 5.4V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.006 g
Overview
HESD9D5.0ST5G protects sensitive semiconductor components from damage or interference caused by ESD and other voltage transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide reliable protection for designs exposed to ESD environments. This device offers designers flexibility to protect a single bidirectional line in applications where an array is not suitable. Available in SOD-923 package.
Key features
- Ultra-low capacitance 0.6 pF
- Low clamping voltage
- Compact package size: 0.031"×0.024" (0.80mm×0.60mm)
- Low profile: 0.015" (0.37 mm)
- Breakdown voltage: 5V
- Low leakage current
- Typical response time <1.0 ns
- Compliant with IEC61000-4-2 Level 4 ESD protection standard
- Lead-free device
