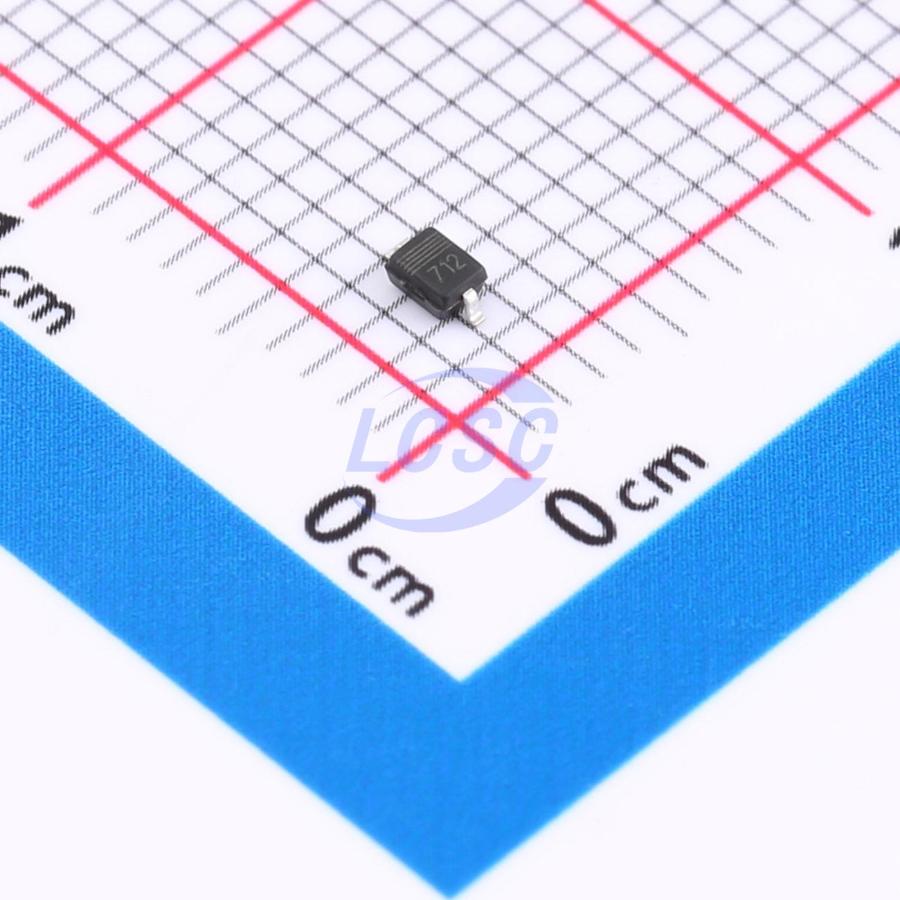

HESDNC712B1EL-B
19VC 12VC Clamp 18A@8/20us Ipp ESD DIODE SOD-323
ESD DIODE 12VWM 7VWM 19VC 12VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESDNC712B1EL-B
- Store part #
- C48783763
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C48783763
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.31 | ₹106.20 |
| 200+ | ₹4.27 | ₹854.00 |
| 600+ | ₹3.76 | ₹2,256.00 |
| 3,000+ | ₹3.37 | ₹10,110.00 |
| 9,000+ | ₹3.06 | ₹27,540.00 |
| 21,000+ | ₹2.91 | ₹61,110.00 |
20 × ₹5.31
₹106.20
excl. GST
₹125.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HESDNC712B1EL-B
₹106.20 for 20 + GST
Specifications
- Clamping Voltage
- 19V;12V
- Operating Temperature
- -40℃~+85℃
- Peak Pulse Current (Ipp)
- 18A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 360W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 14.5V;8.5V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V;7V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.021 g
Overview
HESDNC712B1EL-B protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not practical.
Applications
- RS-485 transceiver (extended common-mode range)
- ATM machines
- Lighting control (DALI)
- Communication equipment
- HFC systems
- Network equipment
Key features
- Protects two +12V to -7V lines
- Low clamp voltage: V_CL = 19 V @ I_PP = 18 A (P1 - P2), V_CL = 12 V @ I_PP = 18 A (P2 - P1)
- Ultra-low leakage current: I_RM < 10 nA
- IEC 61000-4-2 (ESD): ±30kV (air discharge), ±30kV (contact discharge)
- IEC 61000-4-5 (Surge): I_PPM = 18 A
