HXY MOSFETDatasheet (PDF)

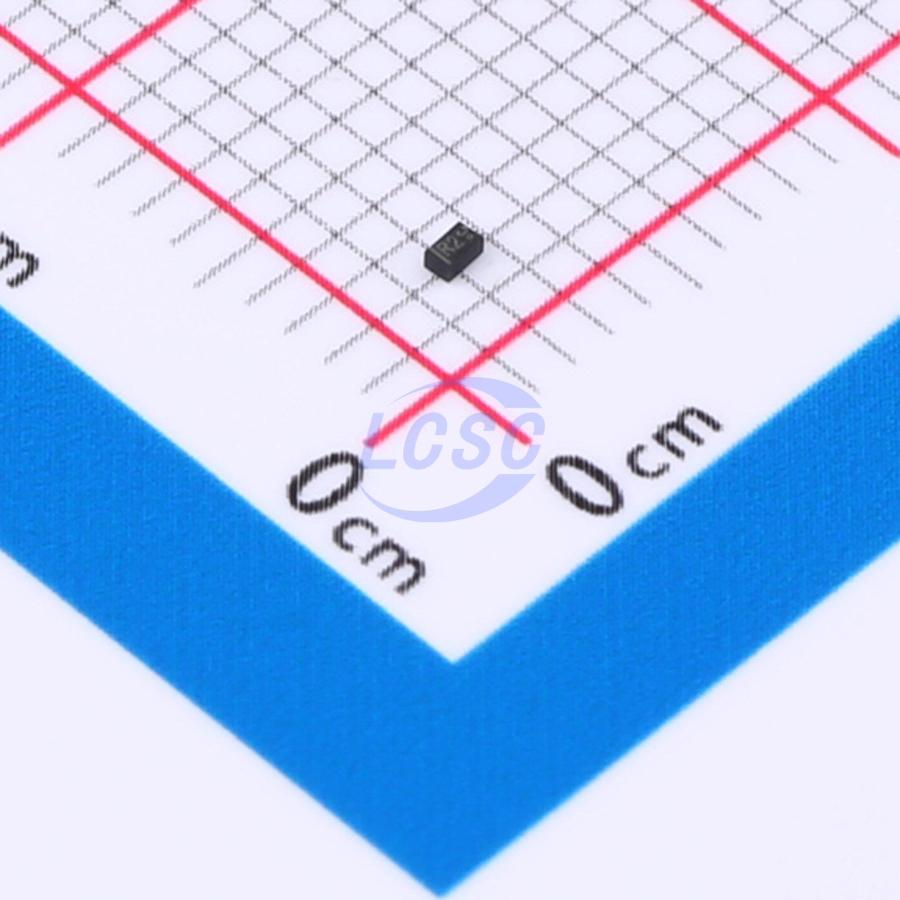

HESDNC7VB1AF-A
13VC Clamp 9A Ipp ESD DIODE DFN1006-2L
DFN1006-2LRoHSActive
ESD DIODE 7VWM 13VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HESDNC7VB1AF-A
- Store part #
- C3033471
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
220 in stock
#C3033471
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹2.29 | ₹22.90 |
| 100+ | ₹1.79 | ₹179.00 |
| 300+ | ₹1.52 | ₹456.00 |
| 1,000+ | ₹1.35 | ₹1,350.00 |
| 5,000+ | ₹1.20 | ₹6,000.00 |
| 10,000+ | ₹1.08 | ₹10,800.00 |
10 × ₹2.29
₹22.90
excl. GST
₹27.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HESDNC7VB1AF-A
₹22.90 for 10 + GST
Specifications
- Clamping Voltage
- 13V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 130W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.002 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PESD7V0L1BSLAZ-HXY#C42416217HXY MOSFET · DFN1006-2L | HXY MOSFET | DFN1006-2L | 9,850 | ₹2.59 · 9,850 in stock | View |
 | AOZ8S507BDS-07#C42416220HXY MOSFET · DFN1006-2L | HXY MOSFET | DFN1006-2L | 10 | ₹6.05 · 10 in stock | View |
 | HCPDVR7V0-HF#C22440034HXY MOSFET · DFN1006-2L | HXY MOSFET | DFN1006-2L | On request | ₹4.37 · 0 in stock | View |
