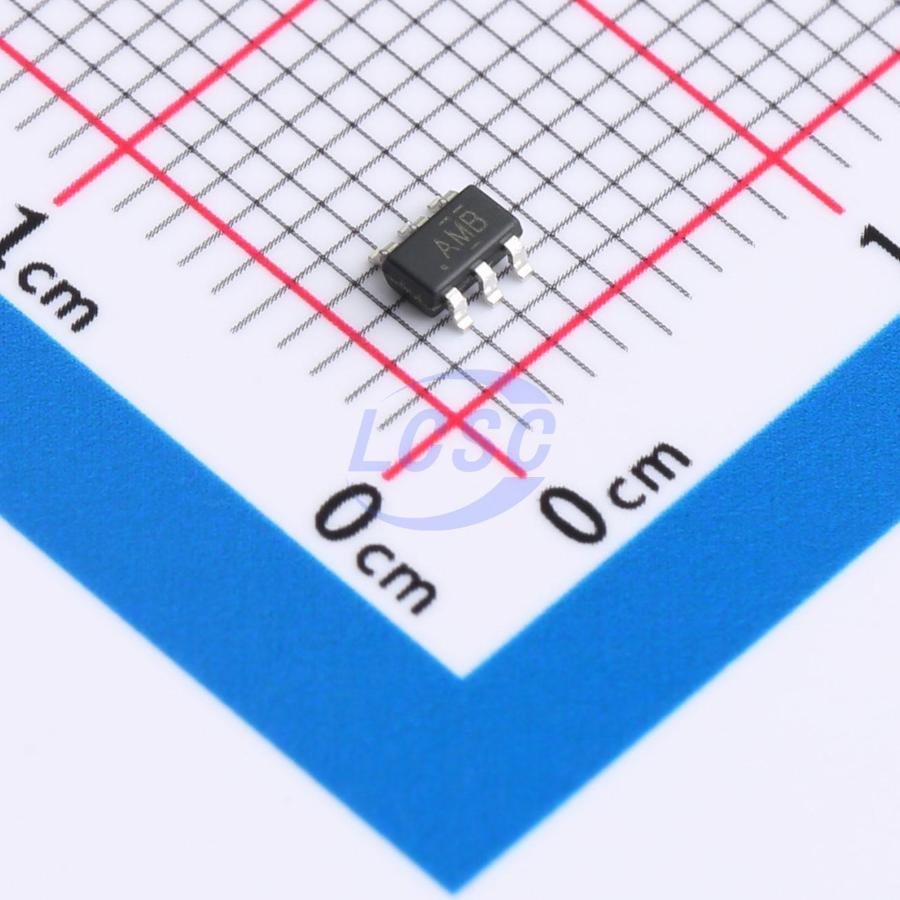

HXY MOSFET

HFP6291LR-G1

Boost Switching Regulator IC Adjustable 2.5V~28V 1 Output 4A SOT-23-6L

SOT-23-6LROHS CompliantActive

Micro-sized High Efficiency Boost DC/DC Converter

Manufacturer: HXY MOSFET
Manufacturer part #: HFP6291LR-G1
Store part #: C22396393
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

75,325 in stock

#C22396393

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹16.54	₹82.70
50+	₹13.45	₹672.50
150+	₹11.92	₹1,788.00
500+	₹10.76	₹5,380.00
3,000+	₹8.41	₹25,230.00
6,000+	₹7.95	₹47,700.00

Quantity (min 5, multiples of 5)

5 × ₹16.54

₹82.70

excl. GST

₹97.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

HFP6291LR-G1

₹82.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+80℃@(TA)
Frequency - Switching: 1.2MHz
Number of Outputs: 1
Function: Boost
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2V~24V
Switch tube (built-in/external): Built-in
Output Current: 4A
Output Voltage: 2.5V~28V
Quiescent Current: 100uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

HFP6291LR-G1 is a miniature, high-efficiency boost DC/DC regulator. The circuit consists of a current-mode PWM control loop, error amplifier, slope compensation circuit, comparator, and power switch. This IC operates efficiently and stably over a wide load range, with an integrated 4A power switch and soft-start protection circuit. A conversion efficiency of up to 93% effectively extends battery life. The output voltage can be set by adjusting two external resistors.
