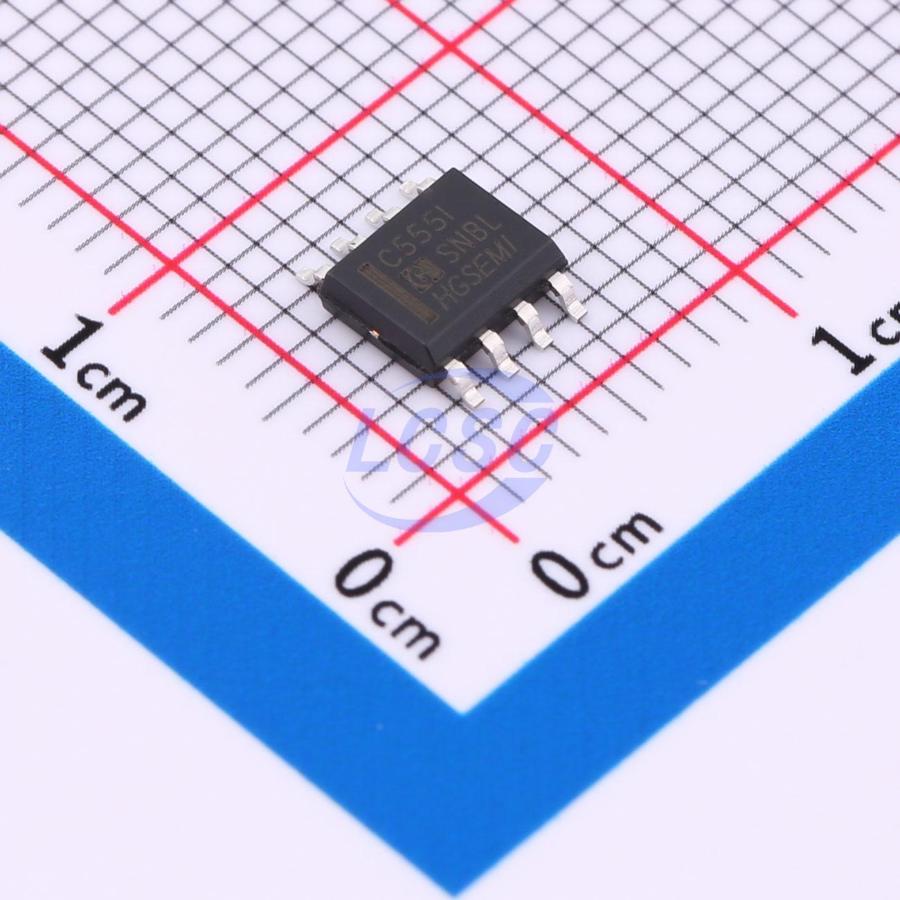

HGC555IM/TR
SOP-8 Programmable Timers and Oscillators
CMOS general purpose timer
- Manufacturer
- HGSEMI
- Manufacturer part #
- HGC555IM/TR
- Store part #
- C19193414
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C19193414
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.74 | ₹88.70 |
| 50+ | ₹15.49 | ₹774.50 |
| 150+ | ₹14.53 | ₹2,179.50 |
| 500+ | ₹13.32 | ₹6,660.00 |
| 2,500+ | ₹12.79 | ₹31,975.00 |
| 5,000+ | ₹12.48 | ₹62,400.00 |
5 × ₹17.74
₹88.70
excl. GST
₹104.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HGC555IM/TR
₹88.70 for 5 + GST
Specifications
- Features
- Adjustable duty cycle oscillation;Reset function
- Operating Temperature
- -40℃~+85℃
- Output Current
- 20mA
- Timer Number
- 1
- Voltage - Supply
- 2V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.253 g
Overview
The HGC555 is CMOS RC timers providing significantly improved performance over the standard SE/NE555 and 355 timers, while at the same time being direct replacements for those devices in most applications. Improved parameters include low supply current, wide operating supply voltage range, low THRESHOLD, TRIGGER and RESET currents, no crowbarring of the supply current during output transitions, higher frequency performance and no requirement to decouple CONTROL VOLTAGE for stable operation. Specifically, the HGC555 is stable controller capable of producing accurate time delays of frequencies.
Key features
- Exact equivalent in most cases for SE/NE555.
- Low Supply Current.
- High speed operation – 500 kHz guaranteed.
- Wide operation supply voltage range – 2 to 18 volts.
- Timing from microseconds through hours.
- Operates in both astable and monostable modes.
- Adjustable duty cycle.
- High output source/sink driver can drive TTL/CMOS
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM555IM/TR#C19193454HGSEMI · SOP-8 | HGSEMI | SOP-8 | 3,050 | ₹12.32 · 3,050 in stock | View |
 | LMC555M/TR#C356725HGSEMI · SOP-8 | HGSEMI | SOP-8 | 4,780 | ₹19.38 · 4,780 in stock | View |
 | TLC555M/TR#C383061HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,170 | ₹19.67 · 2,170 in stock | View |
 | ICM7555M/TR#C434506HGSEMI · SOP-8 | HGSEMI | SOP-8 | 12,390 | ₹18.92 · 12,390 in stock | View |
 | SA555M/TR#C5310805HGSEMI · SOP-8 | HGSEMI | SOP-8 | 350 | ₹12.32 · 350 in stock | View |
