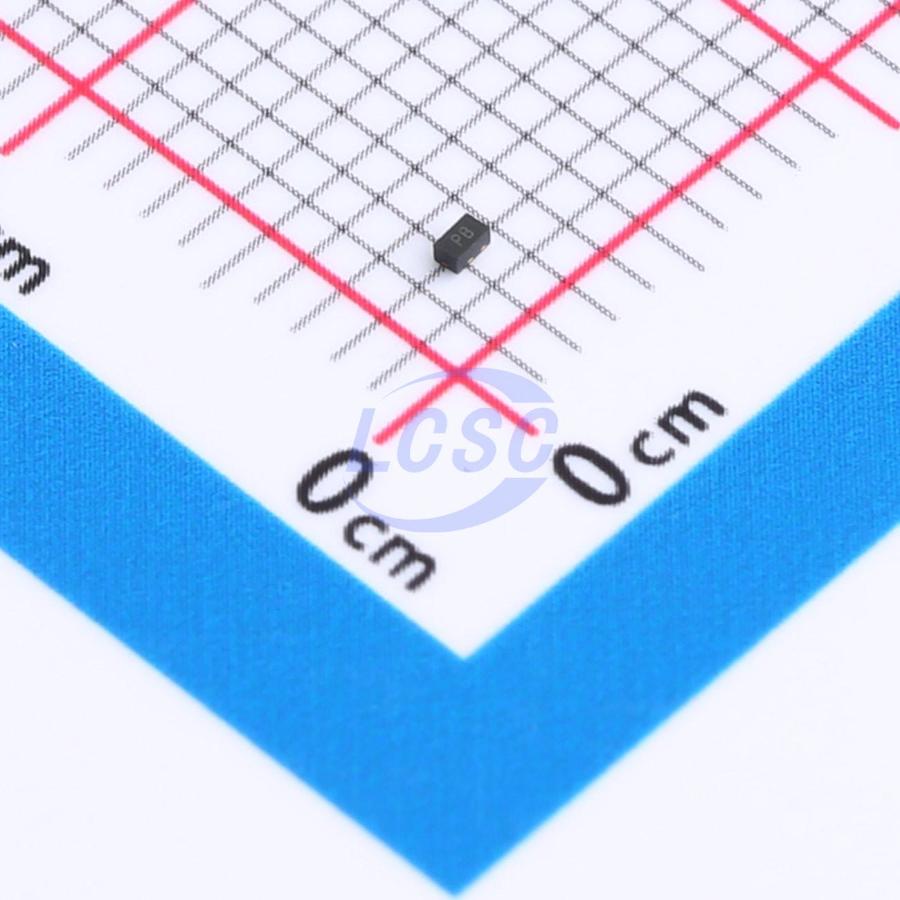

HLESD8D5.0CAT5G-HXY
9.8VC Clamp 9A Ipp ESD DIODE DFN1006-2L
ESD DIODE 5VWM 9.8VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HLESD8D5.0CAT5G-HXY
- Store part #
- C42402006
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C42402006
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹1.03 | ₹103.00 |
| 1,000+ | ₹0.8203 | ₹820.30 |
| 3,000+ | ₹0.7012 | ₹2,103.60 |
| 10,000+ | ₹0.635 | ₹6,350.00 |
| 50,000+ | ₹0.5689 | ₹28,445.00 |
| 1,00,000+ | ₹0.5424 | ₹54,240.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9A
- Peak Pulse Power Dissipation (Ppp)
- 90W
- Number of Channels
- 1
- Voltage - Breakdown
- 8.2V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.011 g
Overview
HLESD8D5.0CAT5G protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. With excellent clamping capability, low leakage, low capacitance, and fast response time, it delivers best-in-class protection for ESD-exposed designs. It enables designers to flexibly protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L (SOD-882) package.
Key features
- Low leakage
- Typical response time less than 1 ns
- Compliant with Human Body Model Level 3 ESD rating
- IEC61000-4-2 Level 4 ESD protection
- Lead-free devices
- RoHS-compliant and halogen-free materials
