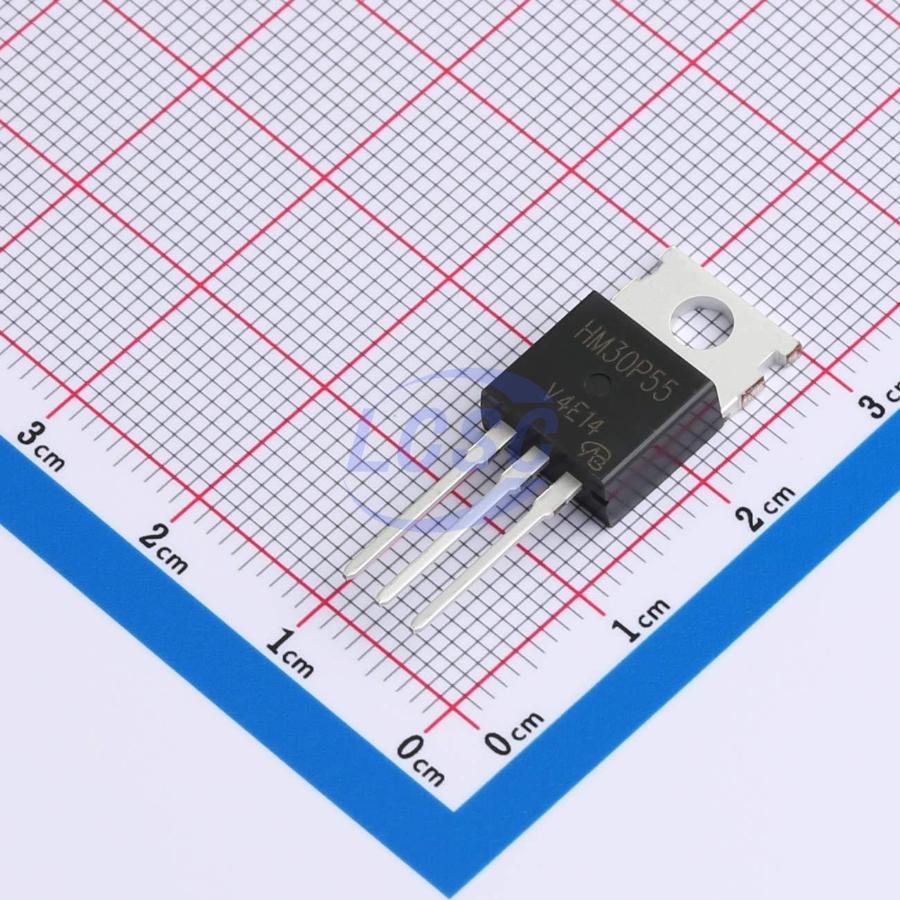

HM30P55-VB
P-Channel 60V 50A 104.2W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 50A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HM30P55-VB
- Store part #
- C22389079
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389079
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹167.00 | ₹167.00 |
| 10+ | ₹138.02 | ₹1,380.20 |
| 50+ | ₹122.26 | ₹6,113.00 |
| 100+ | ₹104.19 | ₹10,419.00 |
| 500+ | ₹96.42 | ₹48,210.00 |
| 1,000+ | ₹92.64 | ₹92,640.00 |
1 × ₹167.00
₹167.00
excl. GST
₹197.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HM30P55-VB
₹167.00 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 50A
- Output Capacitance(Coss)
- 390pF
- Ciss-Input Capacitance
- 3.7nF
- Pd - Power Dissipation
- 104.2W
- Reverse Transfer Capacitance (Crss)
- 290pF
- RDS(on)
- 19mΩ@10V;26mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 78nC@10V;38nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.9 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% single-pulse avalanche energy tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RU60P60R-VB#C22389142VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹167.00 · 9 in stock | View |
 | ME60P06T-VB#C22389490VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹201.81 · 50 in stock | View |
 | 2SJ292-VB#C29778749VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹167.00 · 10 in stock | View |
 | 2SJ348-VB#C45350871VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹238.38 · 10 in stock | View |
 | 2SJ604-VB#C45350872VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹238.38 · 10 in stock | View |
