VBsemi ElecDatasheet (PDF)

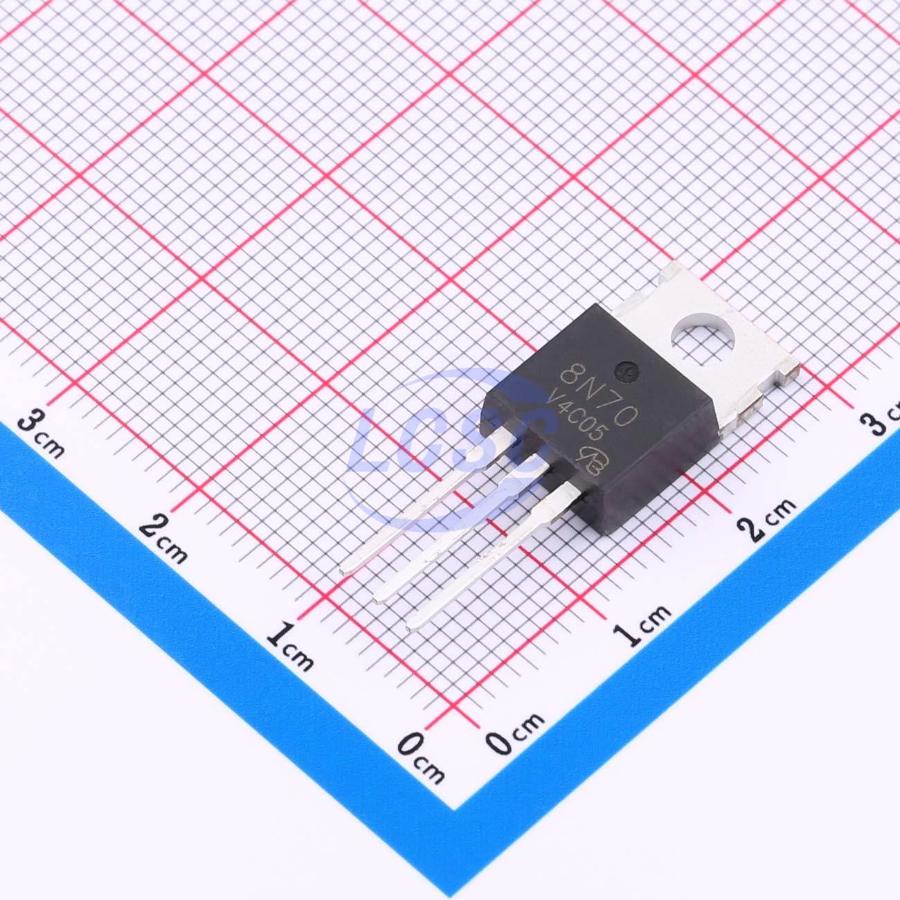

HMS8N70-VB
N-Channel 700V 10A 83W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 700V 10A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HMS8N70-VB
- Store part #
- C20754997
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C20754997
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.58 | ₹171.58 |
| 10+ | ₹144.25 | ₹1,442.50 |
| 50+ | ₹129.18 | ₹6,459.00 |
| 100+ | ₹112.16 | ₹11,216.00 |
| 500+ | ₹104.64 | ₹52,320.00 |
| 1,000+ | ₹101.18 | ₹1,01,180.00 |
1 × ₹171.58
₹171.58
excl. GST
₹202.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HMS8N70-VB
₹171.58 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 83W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 500mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.33 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Ron×Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
