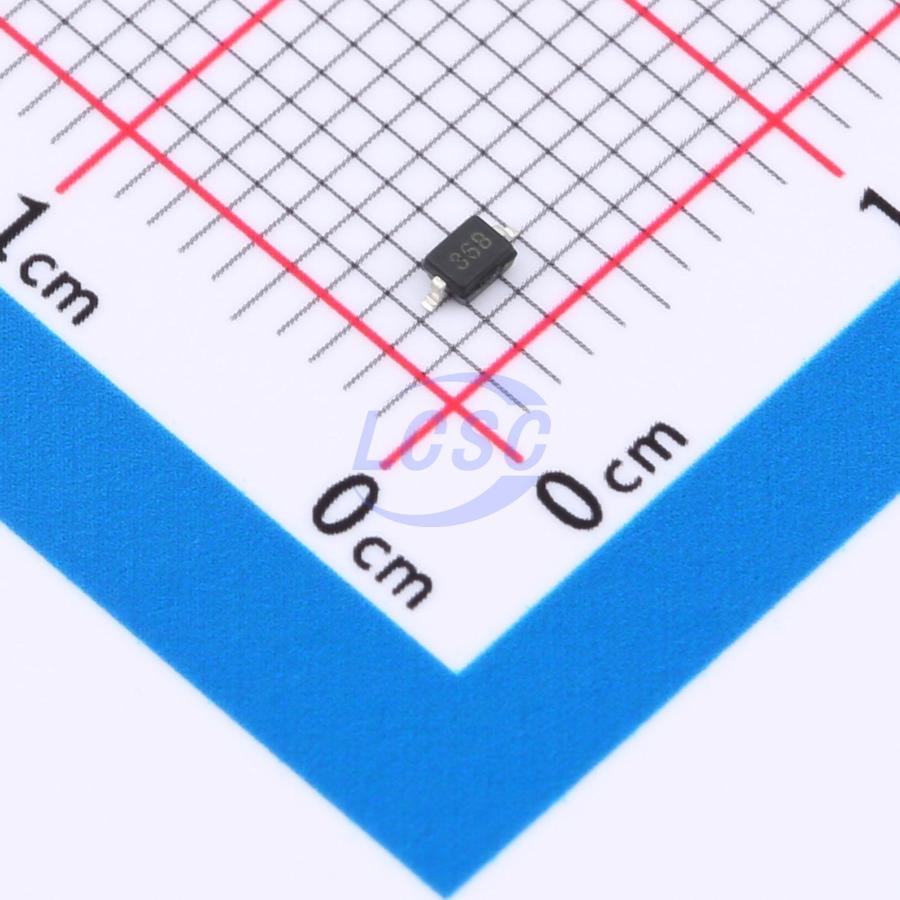

HNNCD36DT(0)-T1-AT
60VC 75VC Clamp 4.5A Ipp ESD DIODE SOD-323
ESD DIODE 36VWM 60VC 75VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HNNCD36DT(0)-T1-AT
- Store part #
- C22439903
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22439903
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.71 | ₹83.55 |
| 50+ | ₹13.19 | ₹659.50 |
| 150+ | ₹11.43 | ₹1,714.50 |
| 500+ | ₹10.12 | ₹5,060.00 |
| 3,000+ | ₹9.06 | ₹27,180.00 |
| 6,000+ | ₹8.53 | ₹51,180.00 |
5 × ₹16.71
₹83.55
excl. GST
₹98.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HNNCD36DT(0)-T1-AT
₹83.55 for 5 + GST
Specifications
- Clamping Voltage
- 60V;75V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4.5A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 40V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
HNNCD36DT(0)-T1-AT protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for ESD-exposed designs. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. SOD-323 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge), and IEC 61000-4-4 (EFT) 40A (5/50ns)
- Peak power dissipation: 350W (8/20µs)
- Working voltage: 36V
- Protects one Vcc or data line
- Low clamping voltage
- Low leakage current
