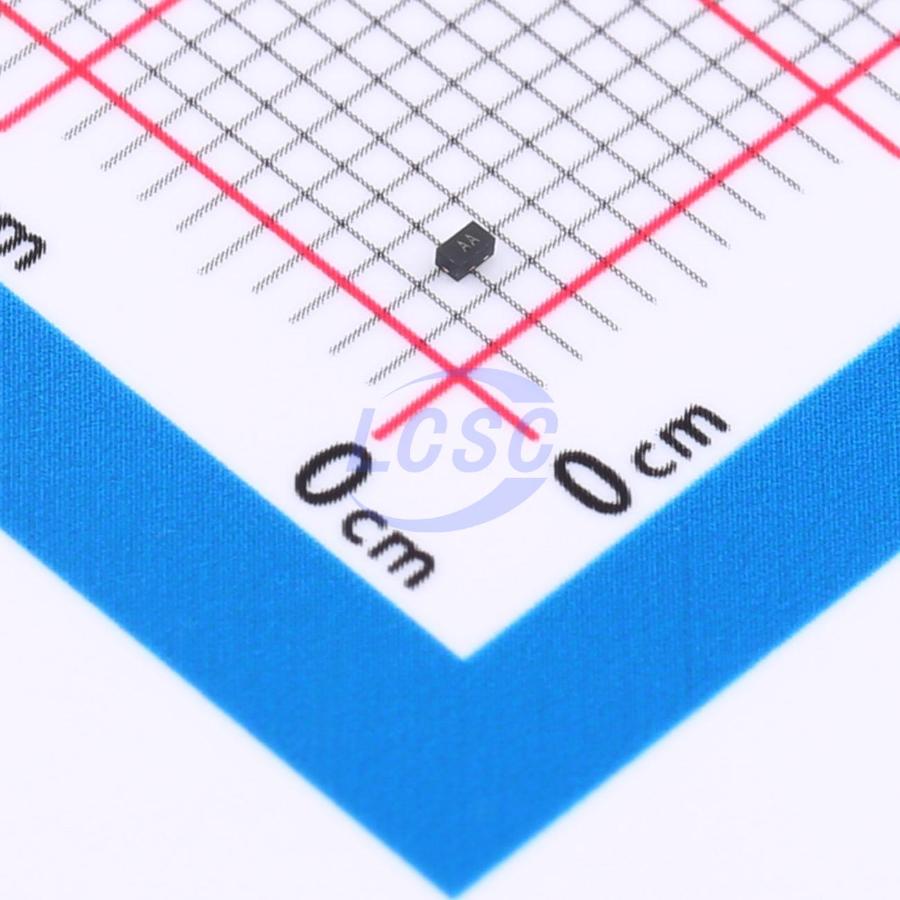

HPESD12VL1BSLAZ
17VC Clamp 8A Ipp ESD DIODE DFN1006-2L
ESD DIODE 12VWM 17VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPESD12VL1BSLAZ
- Store part #
- C42401957
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C42401957
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.33 | ₹93.30 |
| 100+ | ₹7.51 | ₹751.00 |
| 300+ | ₹6.60 | ₹1,980.00 |
| 1,000+ | ₹5.93 | ₹5,930.00 |
| 5,000+ | ₹5.38 | ₹26,900.00 |
| 10,000+ | ₹5.11 | ₹51,100.00 |
10 × ₹9.33
₹93.30
excl. GST
₹110.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HPESD12VL1BSLAZ
₹93.30 for 10 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 8A
- Peak Pulse Power Dissipation (Ppp)
- 140W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13.3V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
The HPESD12VL1BSLAZ protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Superior clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for ESD-exposed designs. It provides designers with the flexibility to protect a single bidirectional line in applications where arrays are not suitable.
Key features
- Compact footprint: 1.00 mm × 0.60 mm
- Low profile height: 0.50 mm
- Low leakage
- Response time typically < 1 ns
- HBM Level 3 ESD rating
- IEC61000-4-2 Level 4 ESD protection
- RoHS-compliant and halogen-free materials
- DFN1006-2L (SOD-882)
