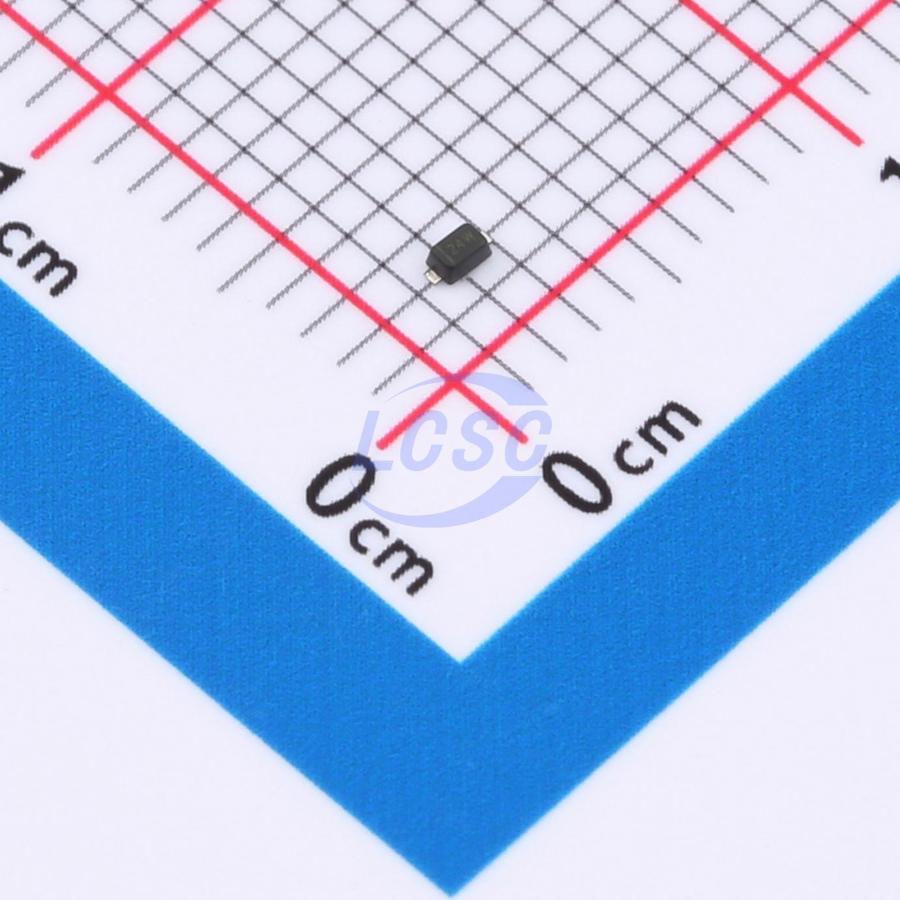

HPESD24VS1UB
45VC Clamp 8A Ipp ESD DIODE SOD-523
ESD DIODE 24VWM 45VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPESD24VS1UB
- Store part #
- C22440441
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C22440441
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.99 | ₹59.80 |
| 200+ | ₹2.35 | ₹470.00 |
| 600+ | ₹2.00 | ₹1,200.00 |
| 3,000+ | ₹1.77 | ₹5,310.00 |
| 9,000+ | ₹1.59 | ₹14,310.00 |
| 21,000+ | ₹1.49 | ₹31,290.00 |
20 × ₹2.99
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HPESD24VS1UB
₹59.80 for 20 + GST
Specifications
- Clamping Voltage
- 45V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 8A
- Peak Pulse Power Dissipation (Ppp)
- 360W@8/20us
- Voltage - Breakdown
- 26.7V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.012 g
Overview
HPESD24VS1UB protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single unidirectional line in applications where an array is not suitable. Available in SOD-523 package.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): contact discharge ±30kV, air discharge ±30kV; compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 360W (8/20us)
- Working voltage: 24V
- Protects one power or data line
- Low clamping voltage
- Low leakage current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HCESD523NC24VU#C22440442HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 400 | ₹3.44 · 400 in stock | View |
 | HD24V0S1U2TQ-7#C22440444HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | On request | ₹3.20 · 0 in stock | View |
 | HAQHV24-01LTG#C22440443HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | On request | ₹5.21 · 0 in stock | View |
 | HAZ9424-01H#C22440445HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | On request | ₹6.26 · 0 in stock | View |
