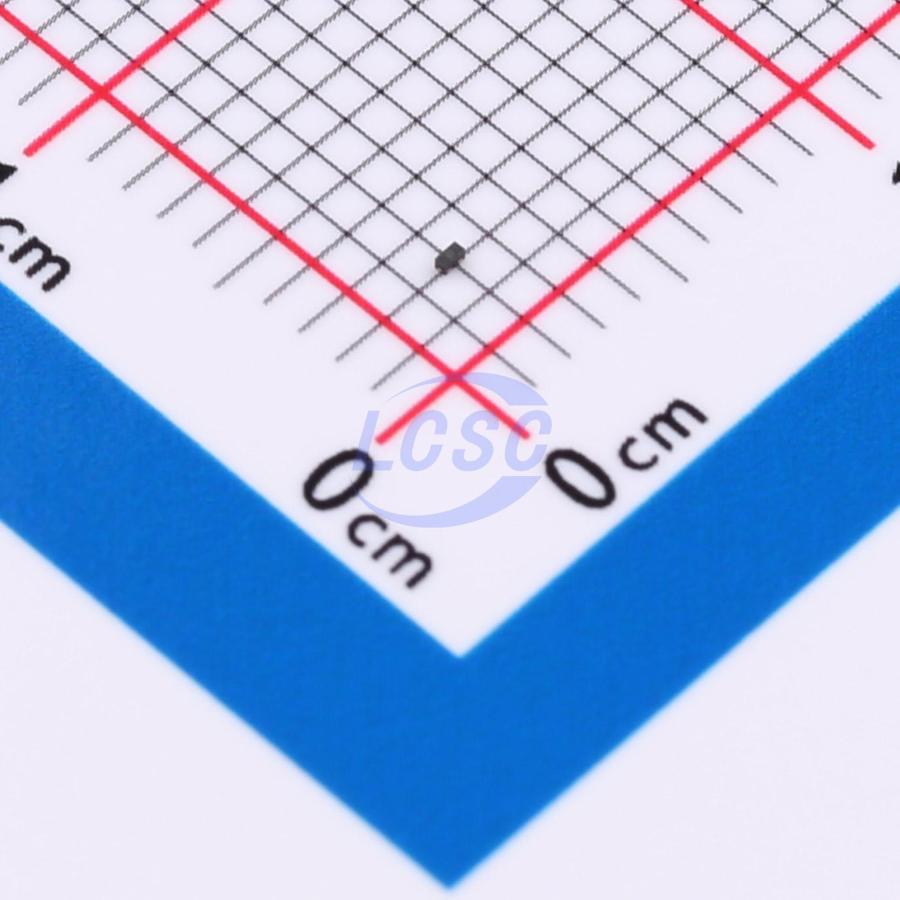

HPESDNC2XD3V3B
7VC Clamp 5A Ipp ESD DIODE DFN0603-2L
ESD DIODE 3.3VWM 7VC DFN0603-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HPESDNC2XD3V3B
- Store part #
- C22439689
- Package / case
- DFN0603-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22439689
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.21 | ₹110.50 |
| 500+ | ₹1.72 | ₹860.00 |
| 1,500+ | ₹1.46 | ₹2,190.00 |
| 15,000+ | ₹1.28 | ₹19,200.00 |
| 30,000+ | ₹1.15 | ₹34,500.00 |
| 45,000+ | ₹1.07 | ₹48,150.00 |
50 × ₹2.21
₹110.50
excl. GST
₹130.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
HPESDNC2XD3V3B
₹110.50 for 50 + GST
Specifications
- Clamping Voltage
- 7V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Voltage - Breakdown
- 6.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.009 g
Overview
This device protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It enables designers to flexibly protect a single bidirectional line in applications where arrays are not practical.
Key features
- Compact package size: 0.61mm × 0.31mm
- Low profile: 0.28mm
- Low leakage current
- Typical response time < 1 ns
- ESD rating compliant with Human Body Model Level 3
- IEC61000-4-2 Level 4 ESD protection
- Lead-free device
- RoHS-compliant and halogen-free materials
