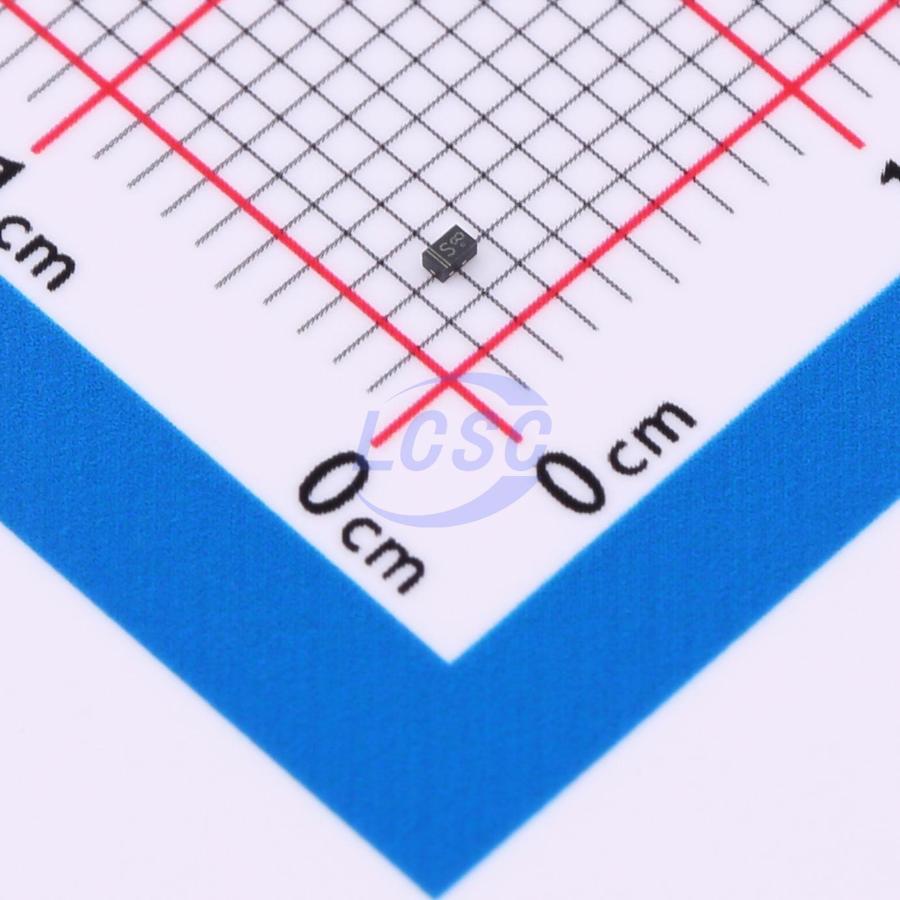

HRCLAMP3331PQTCT
25VC Clamp 4A Ipp ESD DIODE DFN1006-2L
ESD DIODE 3.3VWM 25VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HRCLAMP3331PQTCT
- Store part #
- C22440378
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
270 in stock
#C22440378
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.53 | ₹127.65 |
| 50+ | ₹20.31 | ₹1,015.50 |
| 150+ | ₹18.07 | ₹2,710.50 |
| 500+ | ₹15.27 | ₹7,635.00 |
| 2,500+ | ₹14.02 | ₹35,050.00 |
| 5,000+ | ₹13.28 | ₹66,400.00 |
5 × ₹25.53
₹127.65
excl. GST
₹150.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HRCLAMP3331PQTCT
₹127.65 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 4.2V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.005 g
Overview
HRCLAMP3331PQTCT protects sensitive semiconductor components from damage or malfunction caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It enables designers to flexibly protect a single bidirectional line in applications where arrays are not suitable. Available in DFN1006-2L package.
Key features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
- IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 100W (8/20μs)
- Operating voltage: 3.3V
- Ultra-compact package (1.0mm×0.6mm×0.5mm)
- Protects one data/control line
- Low clamping voltage
- Low leakage current
