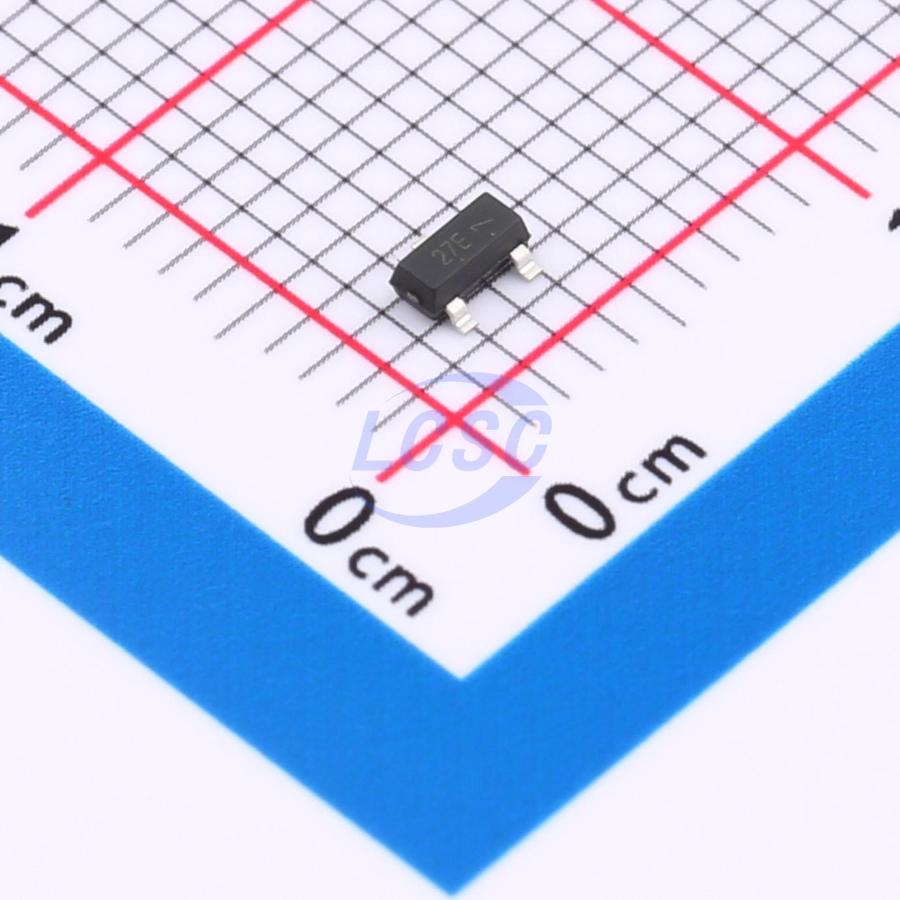

HRESD1CANFHT116
46VC Clamp 5A Ipp ESD DIODE SOT-23
ESD DIODE 24VWM 46VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HRESD1CANFHT116
- Store part #
- C22439690
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C22439690
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.87 | ₹49.35 |
| 50+ | ₹7.81 | ₹390.50 |
| 150+ | ₹6.77 | ₹1,015.50 |
| 500+ | ₹5.99 | ₹2,995.00 |
| 3,000+ | ₹5.37 | ₹16,110.00 |
| 6,000+ | ₹5.07 | ₹30,420.00 |
5 × ₹9.87
₹49.35
excl. GST
₹58.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HRESD1CANFHT116
₹49.35 for 5 + GST
Specifications
- Clamping Voltage
- 46V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 32V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 15nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The HRESD1CANFHT116 protects sensitive semiconductor components from damage or disruption caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect a single bidirectional line in applications where an array is not suitable.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±8kV (contact discharge), ±15kV (air discharge); IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Working voltage: 24V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
