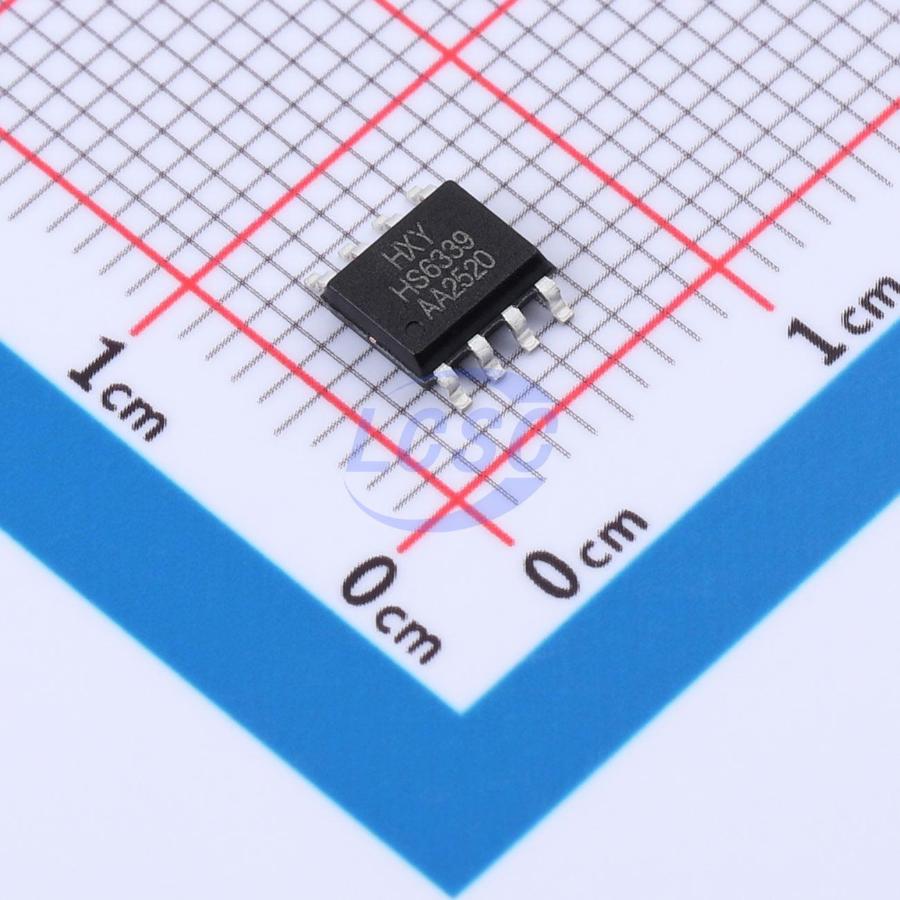

HXY MOSFETDatasheet (PDF)
HS6339
30V 12A 2.5W 10mΩ@10V 1 P-Channel P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HS6339
- Store part #
- C5451634
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
154 in stock
#C5451634
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹10.00 | ₹10.00 |
| 10+ | ₹9.79 | ₹97.90 |
| 30+ | ₹9.64 | ₹289.20 |
| 100+ | ₹9.49 | ₹949.00 |
1 × ₹10.00
₹10.00
excl. GST
₹11.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HS6339
₹10.00 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 233pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.77nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 206pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.181 g
Overview
The HS6339 utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation down to 4.5V gate voltage. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = -30V, drain current (ID) = -12A
- On-resistance (RDS(ON)) < 15mΩ at gate-source voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF9328PBF-HXY#C22366553HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 15 | ₹26.01 · 15 in stock | View |
 | FDS6675-HXY#C22366555HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 45 | ₹32.61 · 45 in stock | View |
| FDS6675BZ-HXY#C22366556HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 25 | ₹31.82 · 25 in stock | View | |
 | HXY4407S#C3033408HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 210 | ₹18.95 · 210 in stock | View |
 | AO4407-HXY#C4748733HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 2,790 | ₹16.01 · 2,790 in stock | View |
