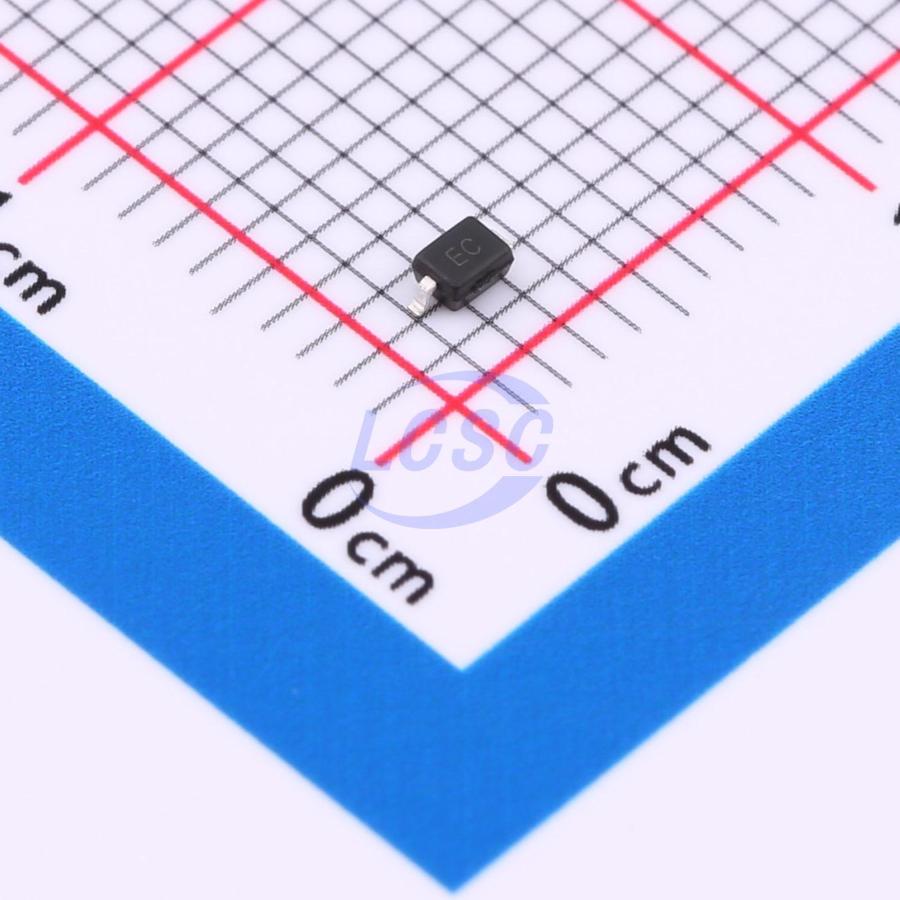

HSD15C-01FTG
33VC Clamp 8A Ipp ESD DIODE SOD-323
ESD DIODE 15VWM 33VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSD15C-01FTG
- Store part #
- C25503291
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
430 in stock
#C25503291
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.89 | ₹78.90 |
| 100+ | ₹6.31 | ₹631.00 |
| 300+ | ₹5.52 | ₹1,656.00 |
| 3,000+ | ₹4.92 | ₹14,760.00 |
| 6,000+ | ₹4.45 | ₹26,700.00 |
| 9,000+ | ₹4.22 | ₹37,980.00 |
10 × ₹7.89
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSD15C-01FTG
₹78.90 for 10 + GST
Specifications
- Clamping Voltage
- 33V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 8A
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Voltage - Breakdown
- 17V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
The HSD15C-01FTG protects sensitive semiconductor components from damage or interference caused by ESD and other voltage transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single bidirectional line in applications where arrays are not suitable. Available in SOD-323 package.
Key features
- Compact package outline dimensions
- Low package height
- Peak power up to 200W under 8×20μs pulse
- Low leakage current
- Typical response time less than 1ns
- Compliant with Human Body Model, ESD Level 3 (greater than 16kV)
- IEC61000-4-2 Level 4 ESD protection
- IEC61000-4-4 Level 4 EFT protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSTS321150B351#C25503290HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 110 | ₹11.66 · 110 in stock | View |
 | HRLSD32A151C#C25503292HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 20 | ₹6.93 · 20 in stock | View |
 | HSD15C.TCT#C25503293HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 20 | ₹5.74 · 20 in stock | View |
 | HSD15C-7#C25503294HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 530 | ₹5.38 · 530 in stock | View |
 | HCDSOD323-T15SC#C25503295HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 40 | ₹5.23 · 40 in stock | View |
