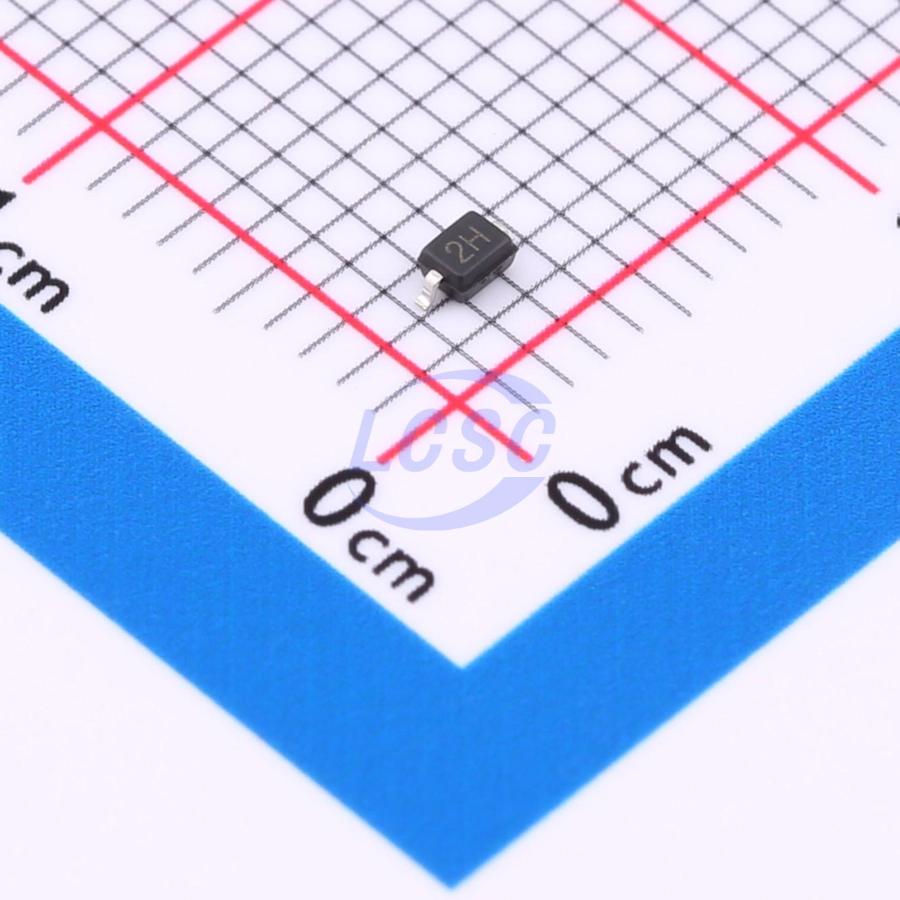

HSD24C-01FTG
63VC Clamp 6A Ipp ESD DIODE SOD-323
ESD DIODE 24VWM 63VC SOD-323
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSD24C-01FTG
- Store part #
- C25503269
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C25503269
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.38 | ₹53.80 |
| 100+ | ₹4.26 | ₹426.00 |
| 300+ | ₹3.69 | ₹1,107.00 |
| 3,000+ | ₹3.27 | ₹9,810.00 |
| 6,000+ | ₹2.94 | ₹17,640.00 |
| 9,000+ | ₹2.77 | ₹24,930.00 |
10 × ₹5.38
₹53.80
excl. GST
₹63.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSD24C-01FTG
₹53.80 for 10 + GST
Specifications
- Clamping Voltage
- 63V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 26V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
HSD24C-01FTG protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD risks. The device offers designers flexibility to protect a single bidirectional line in applications where an array is not suitable. Available in SOD-323 package.
Key features
- Compact form factor
- Low profile body
- Peak power up to 350W under 8×20μs pulse
- Low leakage current
- Typical response time less than 1ns
- IEC61000-4-2 Level 4 ESD protection
- IEC61000-4-4 Level 4 EFT protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSD24C.TCT#C25503260HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 445 | ₹28.35 · 445 in stock | View |
 | HPJSD24CW-AU#C25503261HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 30 | ₹17.73 · 30 in stock | View |
 | HPJSD24CW_R1#C25503262HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 2,965 | ₹14.61 · 2,965 in stock | View |
 | HSTS321240B301#C25503264HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 3,010 | ₹10.78 · 3,010 in stock | View |
 | HSDD32C24L01-AT#C25503267HXY MOSFET · SOD-323 | HXY MOSFET | SOD-323 | 380 | ₹6.97 · 380 in stock | View |
