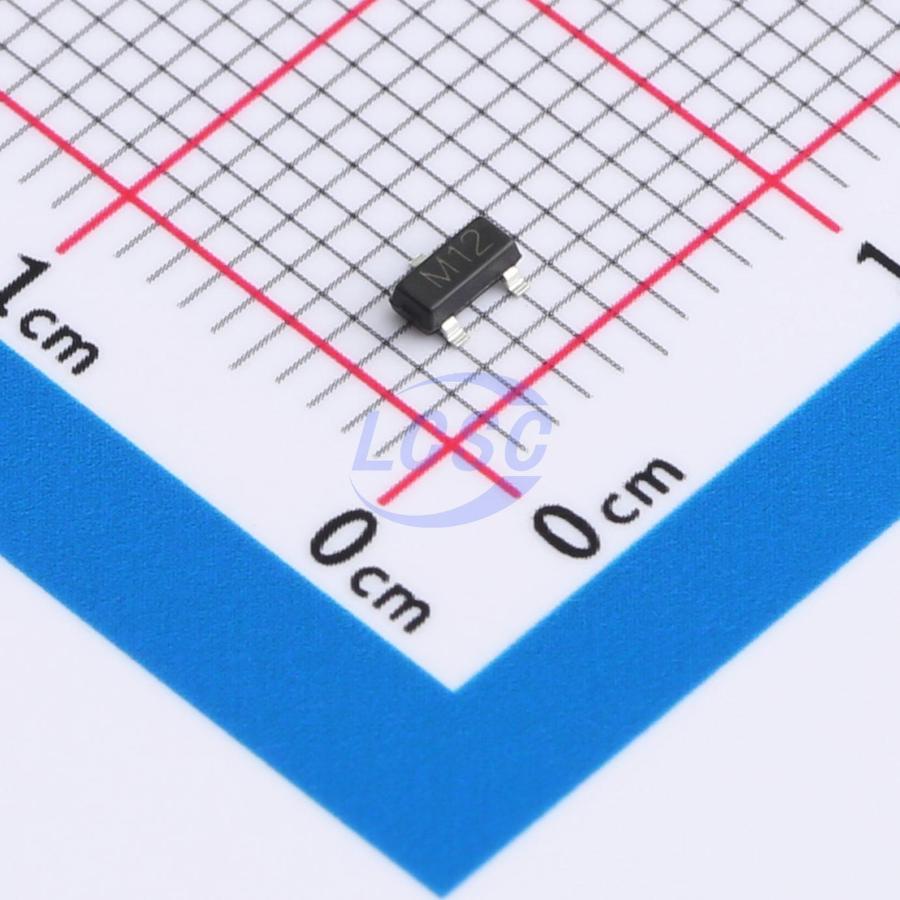

HSET23A12L02
19VC 32VC Clamp 11A Ipp ESD DIODE SOT-23
ESD DIODE 12VWM 19VC 32VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSET23A12L02
- Store part #
- C22439753
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22439753
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.75 | ₹95.00 |
| 200+ | ₹3.69 | ₹738.00 |
| 600+ | ₹3.12 | ₹1,872.00 |
| 3,000+ | ₹2.77 | ₹8,310.00 |
| 9,000+ | ₹2.46 | ₹22,140.00 |
| 21,000+ | ₹2.30 | ₹48,300.00 |
20 × ₹4.75
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSET23A12L02
₹95.00 for 20 + GST
Specifications
- Clamping Voltage
- 19V;32V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 11A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 13.3V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.016 g
Overview
The HSET23A12L02 protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD. It offers designers the flexibility to protect 2 unidirectional lines in applications where arrays are not suitable.
Key features
- Transient protection for high-speed data lines: compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) and ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 350W (8/20μs)
- Working voltage: 12V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
