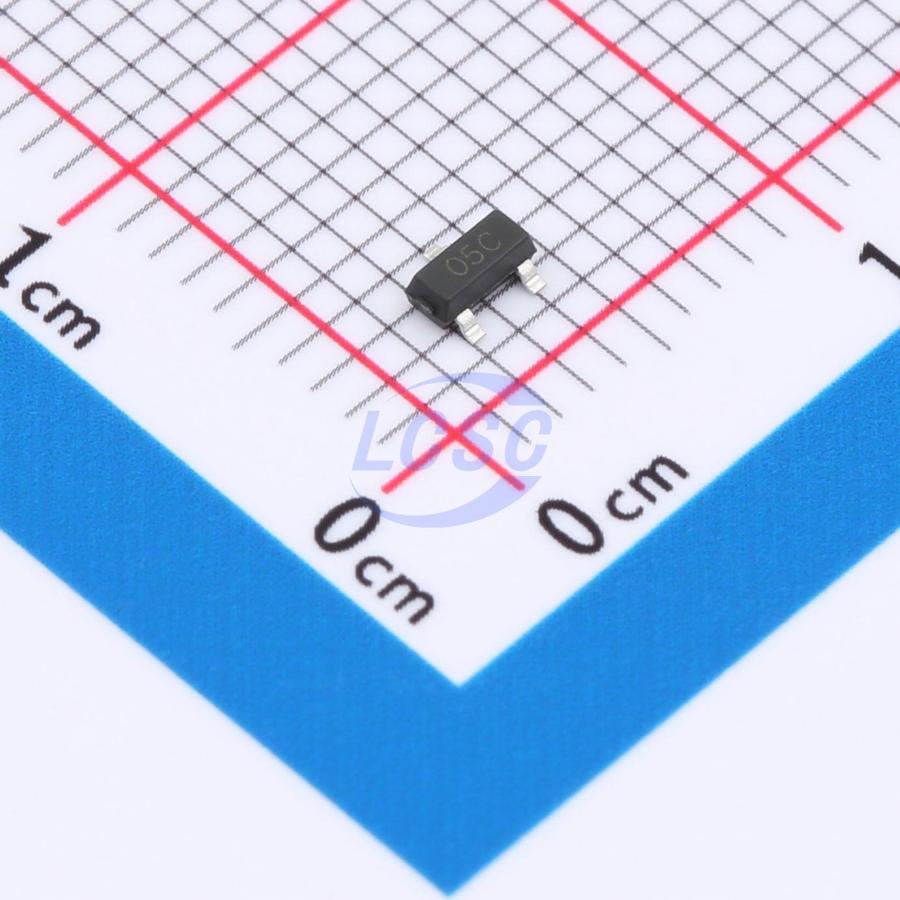

HSM05-7
18VC Clamp 17A Ipp ESD DIODE SOT-23
ESD DIODE 5VWM 18VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSM05-7
- Store part #
- C22439774
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C22439774
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.17 | ₹83.40 |
| 200+ | ₹3.24 | ₹648.00 |
| 600+ | ₹2.74 | ₹1,644.00 |
| 3,000+ | ₹2.43 | ₹7,290.00 |
| 9,000+ | ₹2.17 | ₹19,530.00 |
| 21,000+ | ₹2.02 | ₹42,420.00 |
20 × ₹4.17
₹83.40
excl. GST
₹98.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSM05-7
₹83.40 for 20 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 17A
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 2
- type
- ESD
- Reverse Leakage Current (Ir)
- 10uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.018 g
Overview
The HSM05-7 device protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide industry-leading protection for designs exposed to ESD environments. This device offers designers the flexibility to protect two unidirectional lines in applications where arrays are not suitable.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±30kV (contact discharge), ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 350W (8/20us)
- Operating voltage: 5V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
