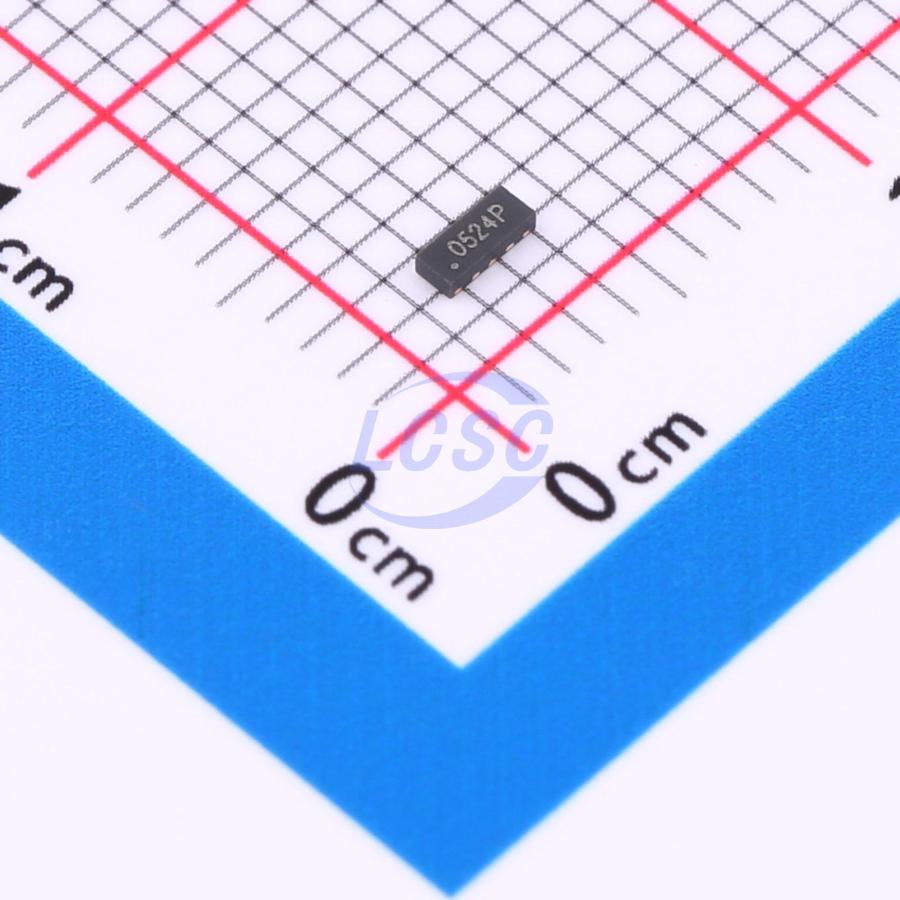

HSP0524PUTG
12VC Clamp 4.5A Ipp ESD DIODE DFN2510-10L
ESD DIODE 5VWM 12VC DFN2510-10L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSP0524PUTG
- Store part #
- C25503768
- Package / case
- DFN2510-10L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
285 in stock
#C25503768
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.72 | ₹68.60 |
| 50+ | ₹10.84 | ₹542.00 |
| 150+ | ₹9.41 | ₹1,411.50 |
| 500+ | ₹8.33 | ₹4,165.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.04 | ₹42,240.00 |
5 × ₹13.72
₹68.60
excl. GST
₹80.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSP0524PUTG
₹68.60 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4.5A
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
HSP0524PUTG is a 4-channel ultra-low capacitance rail-clamp ESD protection diode array. Each channel consists of a diode pair that steers positive or negative ESD current to the positive or negative rail. A Zener diode is integrated within the array between the positive and negative supply rails. In a typical application, the negative rail pin (designated as GND) is connected to system ground. Positive ESD current is steered to ground through the ESD diodes and Zener diode, and the positive ESD voltage is clamped to the Zener voltage. Package: DFN2510-10L.
Key features
- 4-channel ESD protection;
- ESD protection compliant with IEC61000-4-2 Level 4:
- ±17kV air discharge;
- ±12kV contact discharge;
- Ultra-low capacitance: 0.6pF (typical);
- Low clamping voltage;
- Low operating voltage;
- Solid-state silicon technology;
- Protects four I/O lines;
- RoHS compliant and halogen-free.
