HXY MOSFETDatasheet (PDF)

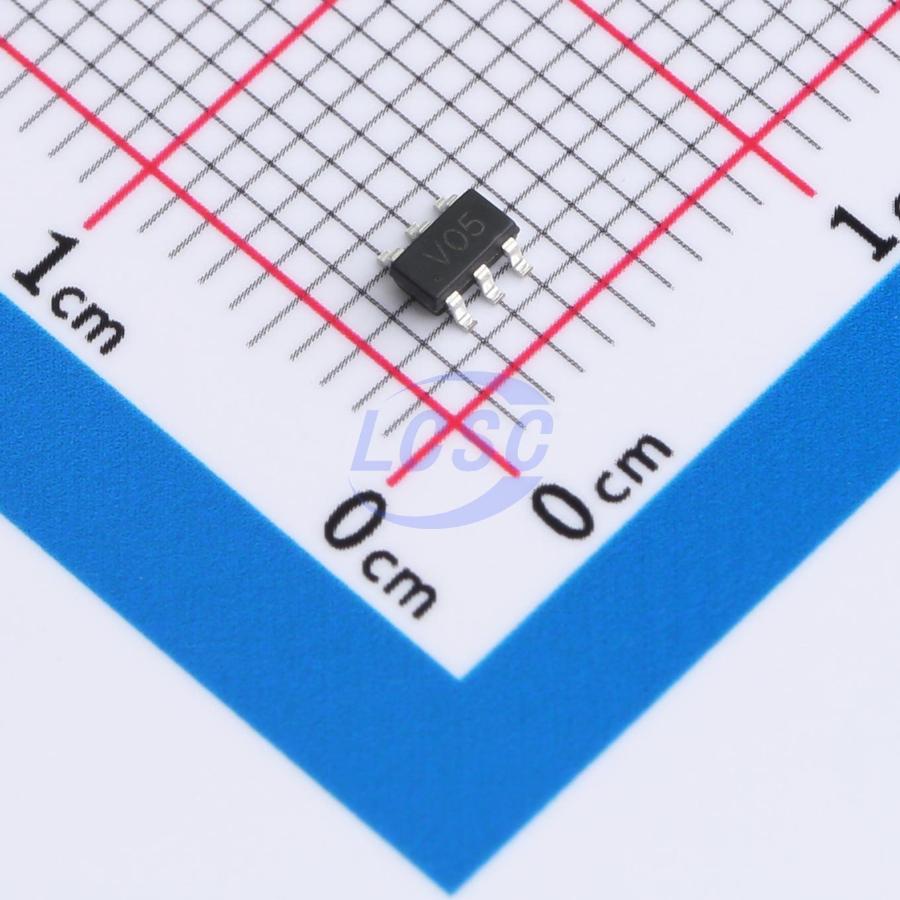

HSRV05-4B
12VC 1.8VC Clamp 4A@8/20us Ipp ESD DIODE SOT-23-6L
SOT-23-6LROHS CompliantActive
ESD DIODE 5VWM 12VC 1.8VC SOT-23-6L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSRV05-4B
- Store part #
- C22440359
- Package / case
- SOT-23-6L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
405 in stock
#C22440359
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.97 | ₹144.85 |
| 50+ | ₹22.74 | ₹1,137.00 |
| 150+ | ₹20.08 | ₹3,012.00 |
| 500+ | ₹16.76 | ₹8,380.00 |
| 3,000+ | ₹15.28 | ₹45,840.00 |
| 6,000+ | ₹14.38 | ₹86,280.00 |
5 × ₹28.97
₹144.85
excl. GST
₹170.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSRV05-4B
₹144.85 for 5 + GST
Specifications
- Clamping Voltage
- 12V;1.8V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 55W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 5
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- 5-channel ESD protection
- IEC61000-4-2 Level 4 compliant ESD protection
- ±27kV air discharge
- ±15kV contact discharge
- Channel I/O to GND capacitance: 0.4pF (max)
- Channel I/O to I/O capacitance: 0.8pF (max)
- Low clamping voltage
- Low operating voltage
- Improved Zener diode structure
- Optimized package for high-speed data line PCB layout
- RoHS compliant
