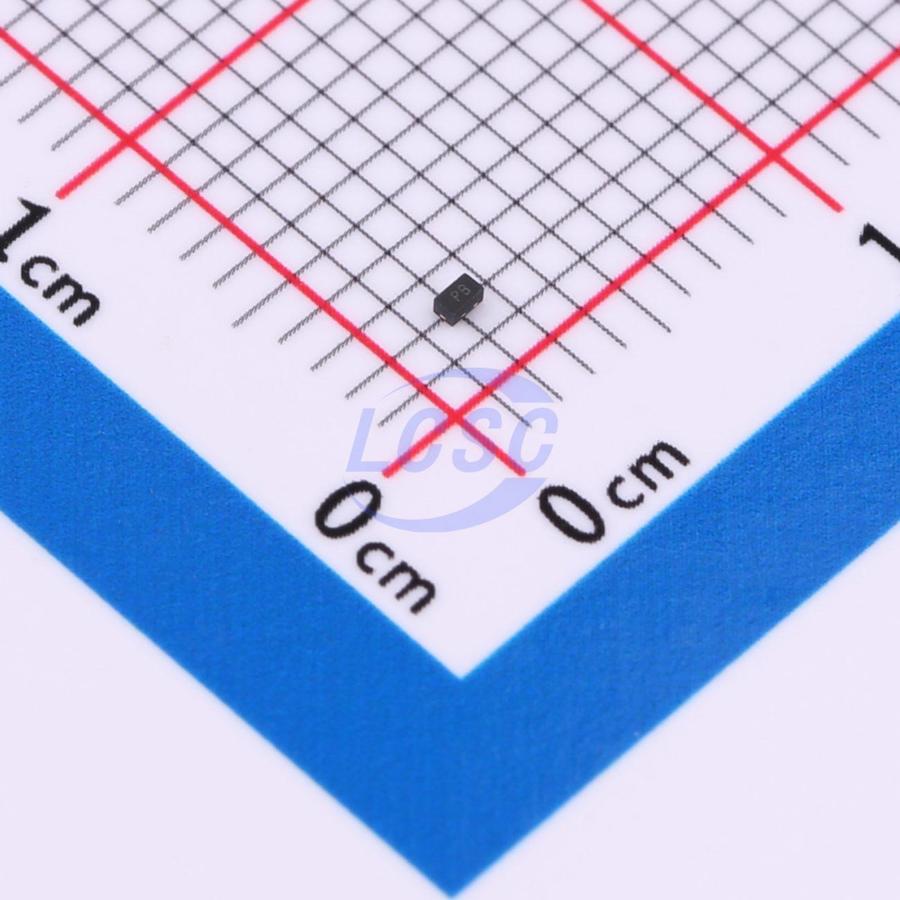

HSTN101050B101
8.5VC Clamp 12A@8/20us Ipp ESD DIODE DFN1006-2L
ESD DIODE 5VWM 8.5VC DFN1006-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTN101050B101
- Store part #
- C22440380
- Package / case
- DFN1006-2L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C22440380
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.00 | ₹80.00 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.60 | ₹1,680.00 |
| 1,000+ | ₹5.00 | ₹5,000.00 |
| 5,000+ | ₹4.51 | ₹22,550.00 |
| 10,000+ | ₹4.27 | ₹42,700.00 |
10 × ₹8.00
₹80.00
excl. GST
₹94.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
HSTN101050B101
₹80.00 for 10 + GST
Specifications
- Clamping Voltage
- 8.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 12A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 66W@8/20us
- Voltage - Breakdown
- 8V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.008 g
Overview
HSTN101050B101 protects sensitive semiconductor components from damage or failure caused by ESD and other voltage-induced transient events. Excellent clamping capability, low leakage, low capacitance, and fast response time deliver best-in-class protection for ESD-sensitive designs. It provides designers with the flexibility to protect a single bidirectional line in applications where an array is not suitable. Available in DFN1006-2L (SOD-882) package.
Key features
- Low leakage
- Typical response time less than 1 ns
- Human Body Model Level 3 ESD rating
- IEC61000-4-2 Level 4 ESD protection
- Lead-free devices
- Materials declared RoHS compliant and halogen-free
