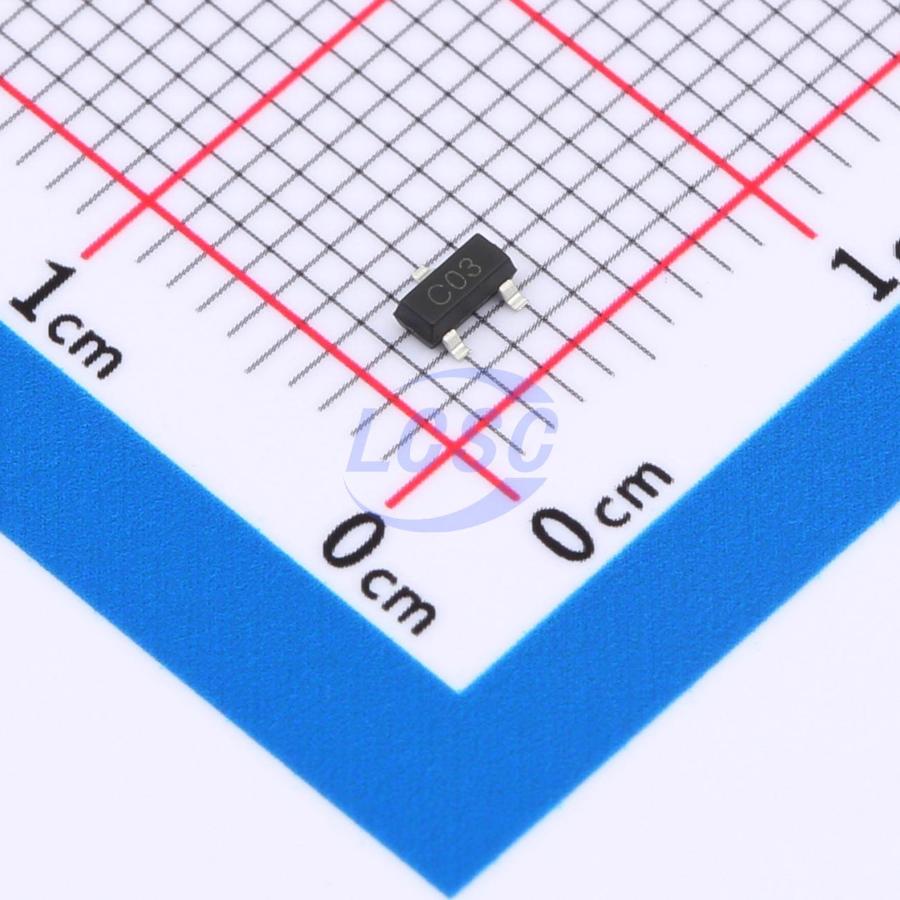

HSTS232050B751
18VC Clamp 34A Ipp ESD DIODE SOT-23
ESD DIODE 3.3VWM 18VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTS232050B751
- Store part #
- C22440448
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
485 in stock
#C22440448
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.85 | ₹99.25 |
| 50+ | ₹15.98 | ₹799.00 |
| 150+ | ₹14.05 | ₹2,107.50 |
| 500+ | ₹12.61 | ₹6,305.00 |
| 3,000+ | ₹11.44 | ₹34,320.00 |
| 6,000+ | ₹10.86 | ₹65,160.00 |
5 × ₹19.85
₹99.25
excl. GST
₹117.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSTS232050B751
₹99.25 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 34A
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 3.6V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
HSTS232050B751 protects sensitive semiconductor components from damage or interference caused by ESD and other voltage transient events. Its superior clamping capability, low leakage current, low capacitance, and fast response time provide robust protection for designs exposed to ESD environments. This device offers designers flexibility to protect a single bidirectional line in applications where arrays are not suitable.
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD): ±30kV (contact discharge), ±30kV (air discharge); compliant with IEC 61000-4-4 (EFT): 40A (5/50 ns)
- Peak power dissipation: 500W (8/20us)
- Working voltage: 3.3V
- Protects one bidirectional line or two unidirectional lines
- Low clamping voltage
- Low leakage current
- SOT-23 package
