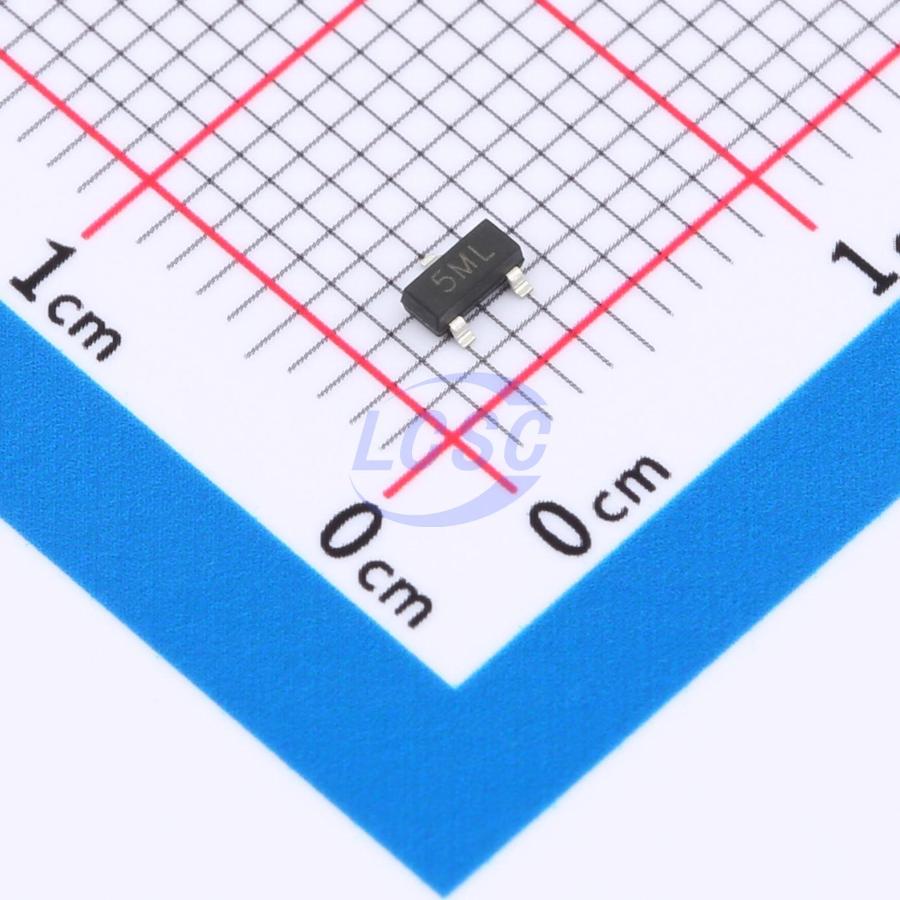

HSTS232050UL40
25VC Clamp 4A@8/20us Ipp ESD DIODE SOT-23
ESD DIODE 5VWM 25VC SOT-23
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HSTS232050UL40
- Store part #
- C22439872
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C22439872
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.25 | ₹76.25 |
| 50+ | ₹12.05 | ₹602.50 |
| 150+ | ₹10.46 | ₹1,569.00 |
| 500+ | ₹9.26 | ₹4,630.00 |
| 3,000+ | ₹8.31 | ₹24,930.00 |
| 6,000+ | ₹7.82 | ₹46,920.00 |
5 × ₹15.25
₹76.25
excl. GST
₹89.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HSTS232050UL40
₹76.25 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Number of Channels
- 2
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
HSTS232050UL40 protects sensitive semiconductor components from damage or interference caused by electrostatic discharge and other voltage-induced transient events. Its excellent clamping capability, low leakage current, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD risks. This device offers designers the flexibility to protect two unidirectional lines in applications where arrays are not suitable.
Key features
- RoHS-compliant and halogen-free materials.
- Two unidirectional transmission functional lines.
- Low leakage current: IR max < 20 μA at VRM.
- 300W peak pulse power (8/20μs waveform).
- Transient protection for data lines per the following standards:
- IEC61000-4-2 (ESD): 15KV (air discharge), 8KV (contact discharge)
- IEC61000-4-5 (lightning surge): refer to IPPM values below
