HTCSEMIDatasheet (PDF)

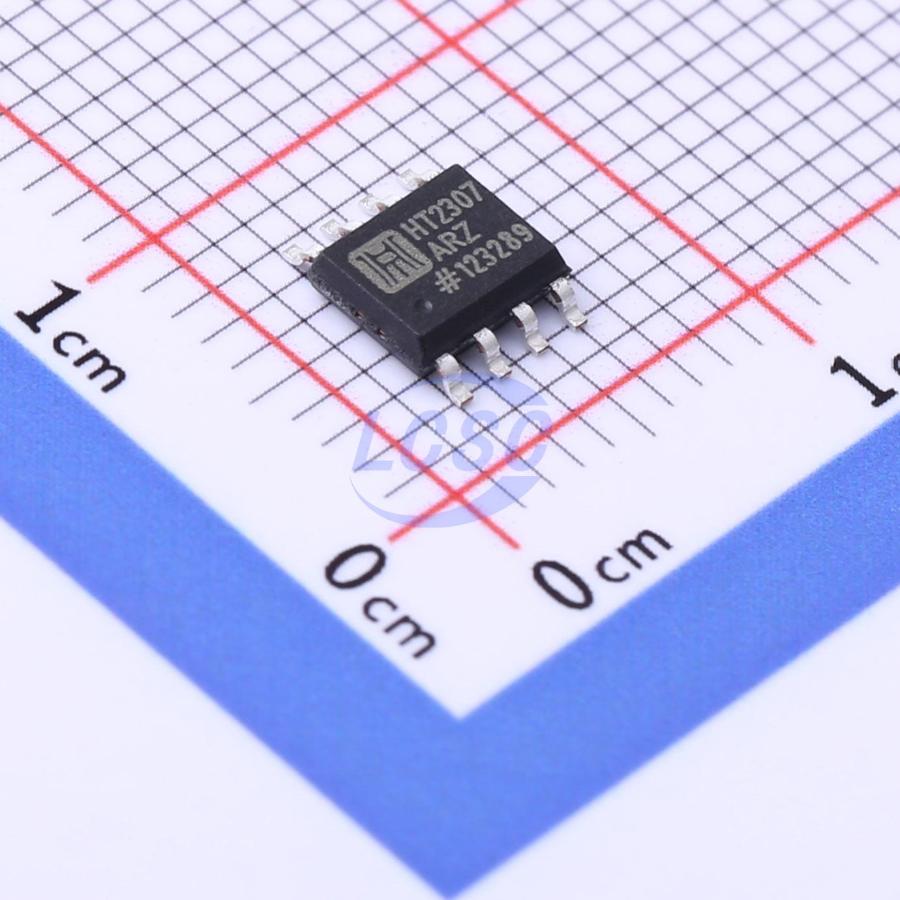

HT2307ARZ
300kHz~380kHz Step-down type Adjustable 925mV~20V 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators
ESOP-8RoHSActive
3A Synchronous Buck Converter
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT2307ARZ
- Store part #
- C2928813
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C2928813
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹93.46 | ₹93.46 |
| 10+ | ₹76.54 | ₹765.40 |
| 30+ | ₹68.08 | ₹2,042.40 |
| 100+ | ₹59.85 | ₹5,985.00 |
| 500+ | ₹47.92 | ₹23,960.00 |
| 1,000+ | ₹45.33 | ₹45,330.00 |
1 × ₹93.46
₹93.46
excl. GST
₹110.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT2307ARZ
₹93.46 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+125℃@(TJ)
- Frequency - Switching
- 300kHz~380kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Adjustable soft-start;Output discharge;External compensation
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~27V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 925mV~20V
- Output Current
- 3A
- Quiescent Current
- 1.3mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The HT2307A is a monolithic synchronous buck regulator. The device integrates 90 mΩ MOSFETS that provide 3A continuous load current over a wide operating input voltage of 4.5V to 27V. Current mode control provides fast transient response and cycle- by-cycle current limit. An adjustable soft-start prevents inrush current at turn on.
Applications
- Distributed Power Systems
- Networking Systems
- FPGA, DSP, ASIC Power Supplies
- Green Electronics/ Appliances
- Notebook Computers
Key features
- 3A Output Current
- Wide 4.5V to 27V Operating Input Range
- Fixed 340KHZ Frequency
- Integrated Power MOSFET switches
- Output Adjustable from 0.925V to 20V
- Up to 95% Efficiency
- Programmable Soft-Start
- Stable with Low ESR Ceramic Output Capacitors
- Cycle by Cycle Over Current Protection
- Short Circuit Protection
- Input Under Voltage Lockout
- Package： ESOP8L
