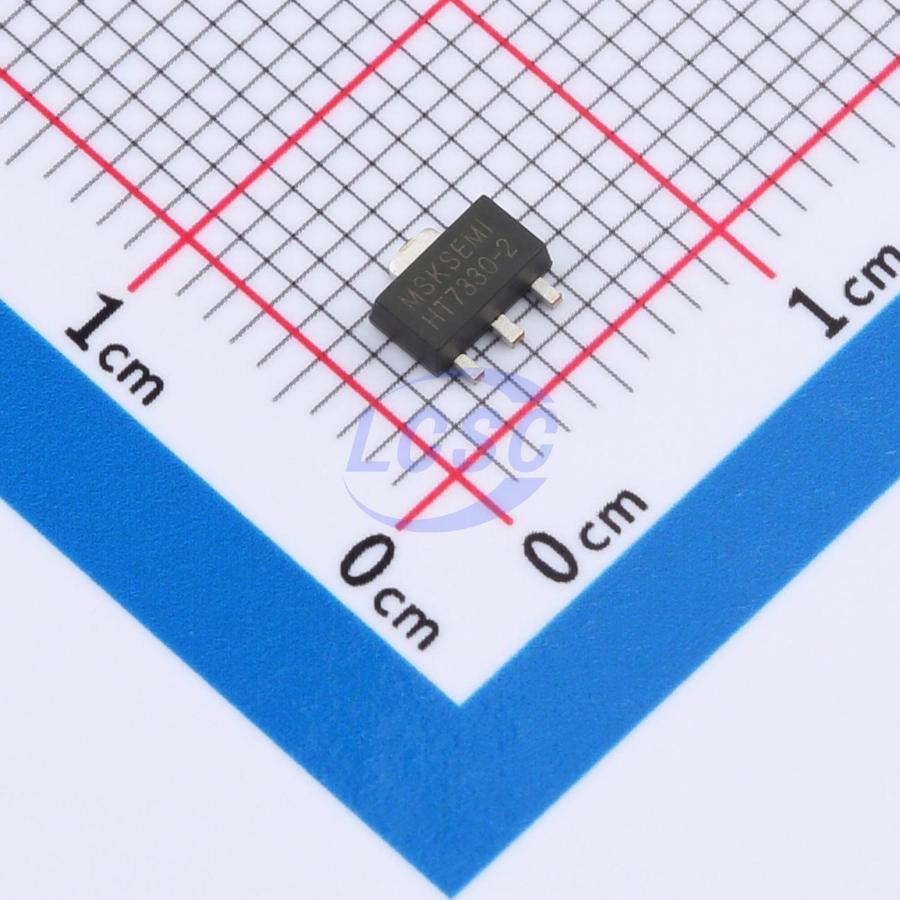

HT7330-2-MS
3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
Low Dropout Linear Regulator ICs
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7330-2-MS
- Store part #
- C30197516
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
860 in stock
#C30197516
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.65 | ₹123.25 |
| 50+ | ₹19.36 | ₹968.00 |
| 150+ | ₹17.09 | ₹2,563.50 |
| 500+ | ₹14.26 | ₹7,130.00 |
| 2,500+ | ₹13.01 | ₹32,525.00 |
| 5,000+ | ₹12.24 | ₹61,200.00 |
5 × ₹24.65
₹123.25
excl. GST
₹145.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7330-2-MS
₹123.25 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Features
- Over Current Protection;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.139 g
Overview
HT73XX-2-MS/HT73XX-2(MS) series are a set of Low Dropout Linear Regulator ICs implemented in CMOS technology. They can withstand voltage 24V. And they are available with low voltage drop and low quiescent current, widely used in audio, video and communication appliances. HT73XX-2-MS/HT73XX-2(MS) series are linear voltage regulator ICs withstanding 24V voltage. The series IC consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. The output stabilization capacitor is also compatible with low ESR ceramic capacitors. The over current protection circuit and the over voltage protection circuit are built-in. The protection circuit will operate when the output current or input voltage reaches limit level.
Applications
- Battery-powered Equipments
- Communication Equipments
- Audio/Video Equipments
Key features
- Low Power Consumption
- Low Voltage Drop
- Low Temperature Coefficient
- Withstanding Voltage 24V
- Quiescent Current 2.0μA
- Output Voltage Accuracy: tolerance ±1%
- High output current: 300mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7330-3-MS#C30197513MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 505 | ₹19.73 · 505 in stock | View |
 | HT7330-1-MS#C7434185MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 840 | ₹10.44 · 840 in stock | View |
