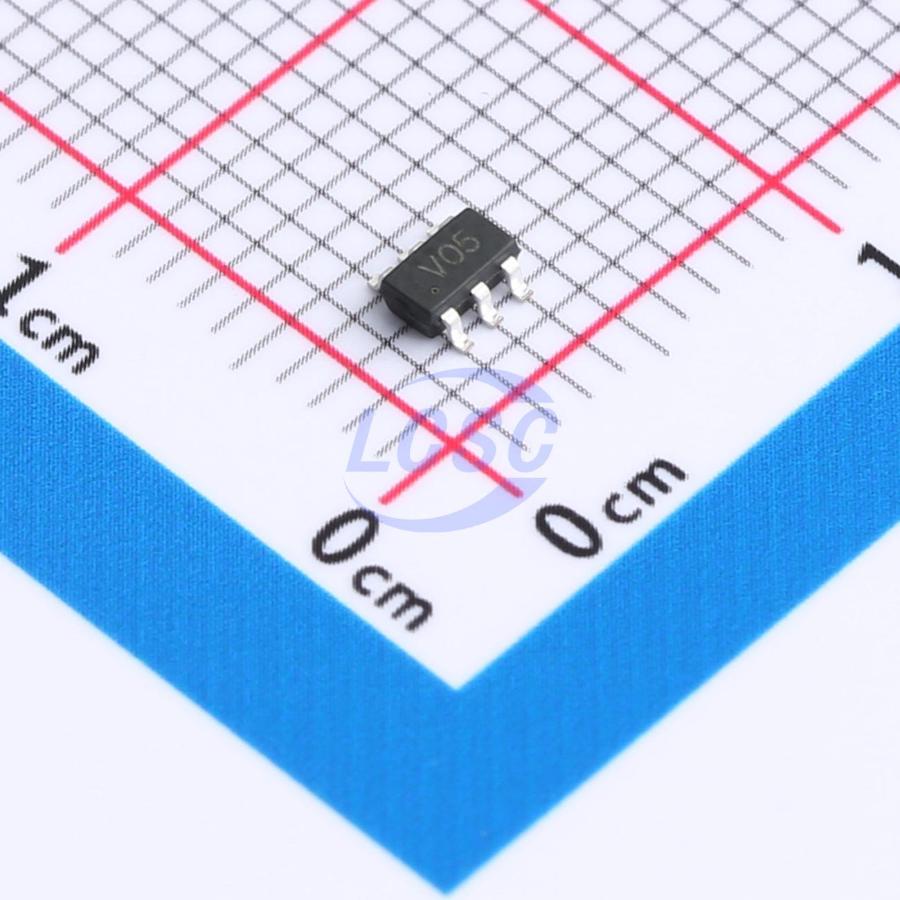

HTPD4E1U06DCKR
12VC Clamp 4A Ipp ESD DIODE SOT-23-6L
ESD DIODE 5VWM 12VC SOT-23-6L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HTPD4E1U06DCKR
- Store part #
- C42402080
- Package / case
- SOT-23-6L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
420 in stock
#C42402080
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.18 | ₹61.80 |
| 100+ | ₹4.97 | ₹497.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.93 | ₹11,790.00 |
| 6,000+ | ₹3.56 | ₹21,360.00 |
| 9,000+ | ₹3.39 | ₹30,510.00 |
10 × ₹6.18
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HTPD4E1U06DCKR
₹61.80 for 10 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 55W
- Number of Channels
- 5
- Voltage - Breakdown
- 6V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
HTPD4E1U06DCKR is a 5-channel ultra-low capacitance rail-clamp ESD protection diode array. Each channel consists of a pair of ESD diodes that steer positive or negative ESD current to the positive or negative supply rail. A Zener diode is integrated between the positive and negative supply rails of the array. In a typical application, the negative supply rail pin (designated as GND) is connected to system ground. Positive ESD current is steered to ground through one ESD diode and the Zener diode, and the positive ESD voltage is clamped to the Zener voltage.
Key features
- 5-channel ESD protection
- IEC61000-4-2 Level 4 compliant ESD protection
- ±27kV air discharge
- ±15kV contact discharge
- Channel I/O to GND capacitance: 0.4pF (max)
- Channel I/O to I/O capacitance: 0.8pF (max)
- Low clamping voltage
- Low operating voltage
- Improved Zener structure
- Optimized package for high-speed data line PCB layout
- RoHS compliant
- SOT-23-6L package
