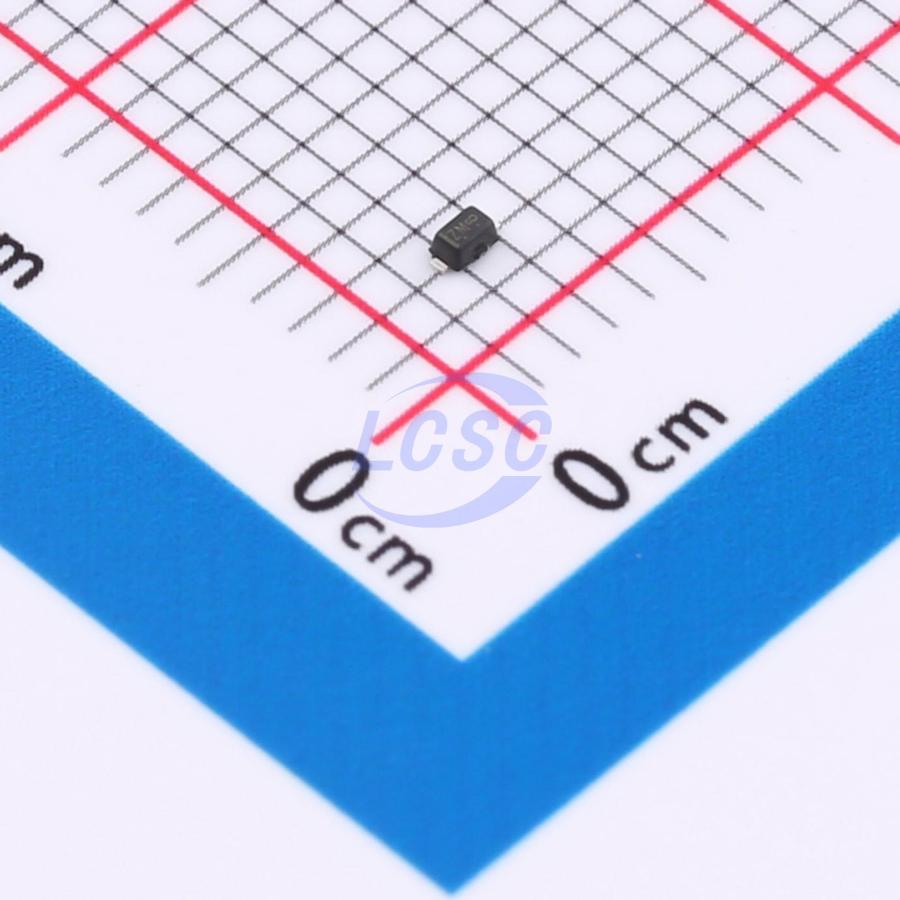

HUCLAMP1201H.TCT
29VC Clamp 6A Ipp ESD DIODE SOD-523
ESD DIODE 12VWM 29VC SOD-523
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HUCLAMP1201H.TCT
- Store part #
- C22440420
- Package / case
- SOD-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C22440420
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.02 | ₹100.10 |
| 50+ | ₹16.05 | ₹802.50 |
| 150+ | ₹14.05 | ₹2,107.50 |
| 500+ | ₹12.57 | ₹6,285.00 |
| 3,000+ | ₹11.38 | ₹34,140.00 |
| 6,000+ | ₹10.77 | ₹64,620.00 |
5 × ₹20.02
₹100.10
excl. GST
₹118.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HUCLAMP1201H.TCT
₹100.10 for 5 + GST
Specifications
- Clamping Voltage
- 29V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A
- Peak Pulse Power Dissipation (Ppp)
- 174W@8/20us
- Voltage - Breakdown
- 14.1V
- Number of Channels
- 1
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 20nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
HUCLAMP1201H.TCT protects sensitive semiconductor components from damage or interference caused by ESD and other voltage-induced transient events. Its superior clamping capability, low leakage, low capacitance, and fast response time provide best-in-class protection for designs exposed to ESD environments. It offers designers the flexibility to protect a single unidirectional line in applications where arrays are not practical. Available in SOD-523 package.
Applications
- Unidirectional signal line protection
- Power line protection
Key features
- Transient protection for high-speed data lines, compliant with IEC 61000-4-2 (ESD) ±30kV (contact discharge) ±30kV (air discharge) and IEC 61000-4-4 (EFT) 40A (5/50 ns)
- Peak power dissipation: 174W (8/20us)
- Working voltage: 5V
- Protects one VCC or data line
- Low clamping voltage
- Low leakage current
