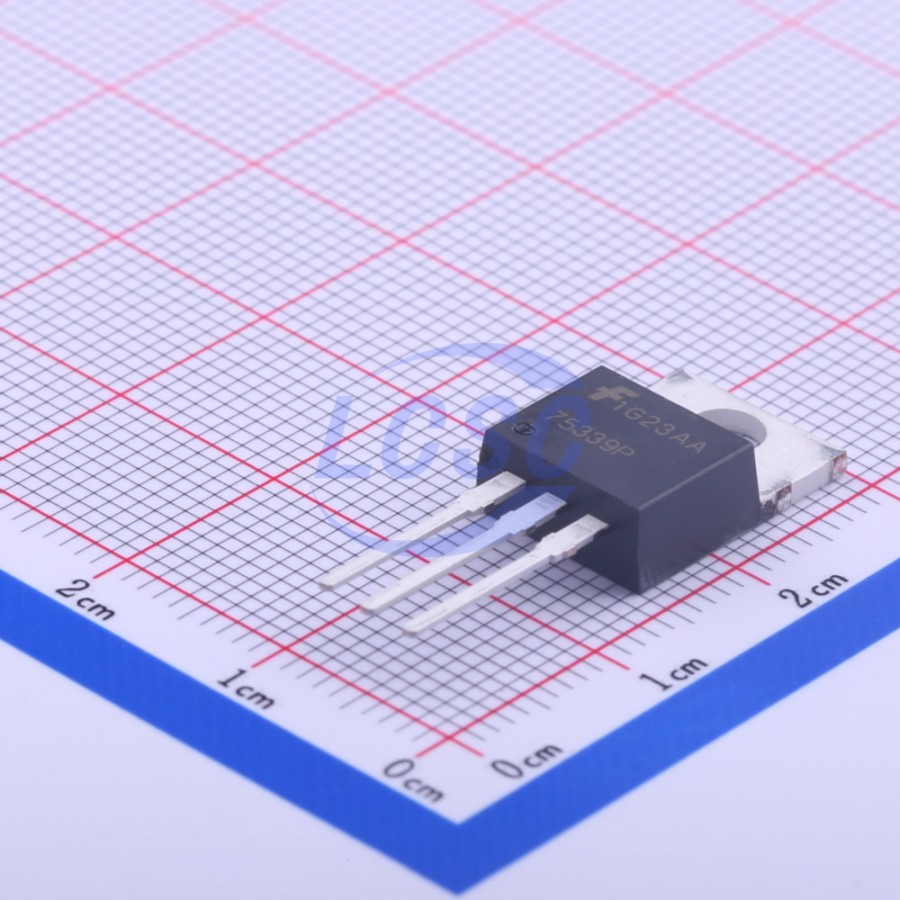

HUF75339P3
200W 55V 75A 12mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- HUF75339P3
- Store part #
- C184834
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C184834
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹412.05 | ₹412.05 |
| 10+ | ₹365.61 | ₹3,656.10 |
| 50+ | ₹336.60 | ₹16,830.00 |
| 100+ | ₹306.94 | ₹30,694.00 |
| 500+ | ₹293.61 | ₹1,46,805.00 |
| 800+ | ₹287.81 | ₹2,30,248.00 |
1 × ₹412.05
₹412.05
excl. GST
₹486.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HUF75339P3
₹412.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 700pF
- Ciss-Input Capacitance
- 2nF
- Pd - Power Dissipation
- 200W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC@20V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These N-channel power MOSFETs are manufactured using the innovative UltraFET process. This advanced process technology achieves the lowest possible on-resistance per unit silicon area, delivering outstanding performance. The devices can withstand high energy in avalanche mode, and the diode features extremely short reverse recovery time and minimal stored charge. They are designed for applications demanding high power efficiency, such as switching regulators, switching converters, motor drivers, relay drivers, low-voltage bus switches, and power management in portable and battery-powered products.
Applications
- Switching regulators
- Switching converters
- Motor drivers
- Relay drivers
- Low-voltage bus switches
- Power management in portable and battery-operated products
Key features
- 75A, 55V
- Simulation Models
- Temperature-compensated PSPICE and SABER models
- SPICE and SABER thermal impedance models available at: www.fairchildsemi.com
- Peak Current vs. Pulse Width Curve
- UIS Rating Curve
- TB334 "Guidelines for Soldering Surface Mount Components to PC Boards"
